DFG 10D Digital Force Gauge

Name: DFG 10D Digital Force Gauge
Brand: MINOO IMPEX
Price: 23000.0 INR
Availability: InStock

Price 23000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DFG 10D Digital Force Gauge Specification

Measuring Range
0-10N (Newton)

Frequency
50 Hz

Case
ABS Plastic

Outer Size
148 × 75 × 35 mm

Thread
M6

Sensor Type
Strain Gauge

Display
Digital LCD

Material
ABS Plastic

Grade
Industrial

Application
Force Measurement, Laboratory, Industrial Testing

Accuracy
±0.2% F.S.

Unit Selection
N, kg, lb switchable

Data Output
RS232 Interface

Power Supply
Rechargeable Battery

Capacity
10 Newtons

Mounting
Handheld/Fixture Mountable

Sampling Rate
1000 times/sec

Overload Protection
150% of F.S.

Peak Hold Function
Yes

Weight
Approx. 500g

Calibration
Manual and Automatic

Operating Temperature
0°C to 40°C

Resolution
0.001 N

DFG 10D Digital Force Gauge About

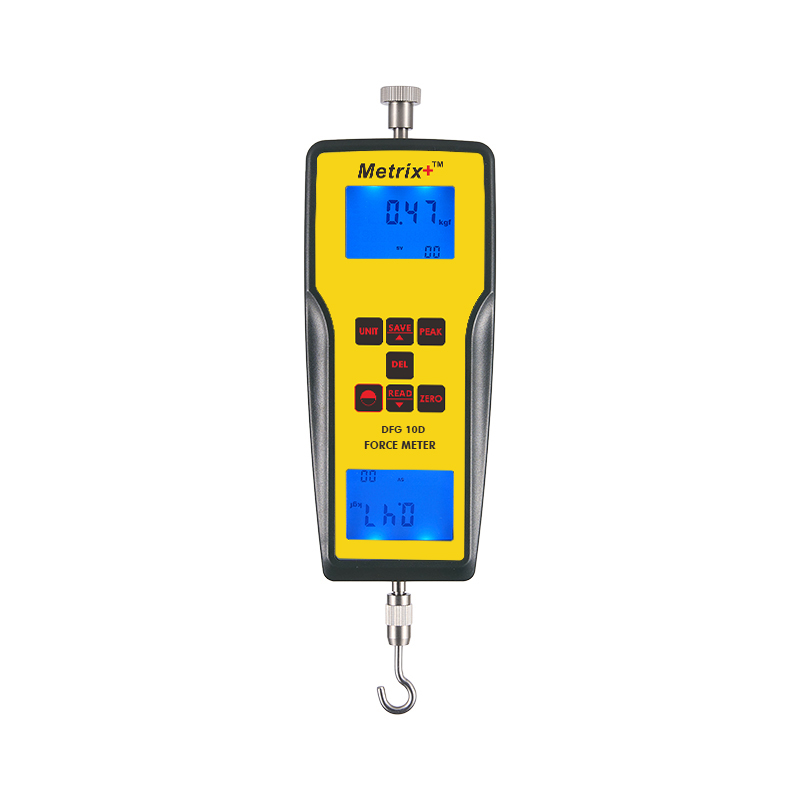

DFG 10D Digital Force Gauge

This can be used to measure upto 98N/10kgf force, with real time and peak value, data storage, convertible measurement units, and 2 reversed LCD.

Features:

Various models from 10N-10,000N
2 reversed backlit LCD for easy readability
Data storage and Max data hold
Convertible measurement units: N, kg, lb
Battery or external power supply
Optional data logging

Applications:

Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.

Measuring Principle:

Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.

Precision and Versatility

Engineered for accuracy and adaptability, the DFG 10D measures forces up to 10N with a fine 0.001N resolution. Its selectable units enable seamless transitions between Newtons, kilograms, and pounds, catering to a variety of testing environments and requirements.

Robust Design for Industrial Use

Housed in sturdy ABS plastic, this digital force gauge is ready for demanding settings. The strain gauge sensor ensures reliable readings, and integrated overload protection supports safety well beyond typical force limits, making it suitable for both bench and handheld operation.

Efficient Data Management

With an RS232 output, results can be easily transferred for further analysis or documentation. An intuitive digital display and both manual and automatic calibration streamline processes, delivering consistent results and operational ease.

FAQ's of DFG 10D Digital Force Gauge:

Q: How do I switch between Newton, kilogram, and pound measurement units on the DFG 10D?

A: You can toggle between Newtons (N), kilograms (kg), and pounds (lb) using the unit selection function located on the device. Simply press the unit switch button to cycle through the available measurement units as required.

Q: What is the process for calibrating the DFG 10D Force Gauge?

A: Calibration can be performed manually or automatically. For manual calibration, refer to the included instructions and use standard weights as reference. Automatic calibration guides you through prompts on the display, ensuring precise operation for ongoing measurements.

Q: When should the rechargeable battery be recharged to maintain optimal performance?

A: It is recommended to recharge the device's battery when you notice a low battery indicator on the LCD display or after extended use. Regular charging helps maintain consistent performance and extends the lifespan of the rechargeable battery.

Q: Where can the DFG 10D be mounted during testing?

A: The force gauge is designed for both handheld use and fixture mounting. Its M6-threaded connection and compact size make it suitable for secure attachment to test stands or fixtures as well as comfortable handheld operation.

Q: What types of applications benefit most from using the DFG 10D Digital Force Gauge?

A: This device excels in force measurement tasks within laboratories, industrial material testing, quality control, and research and development-anywhere precise and reliable force measurement is essential.

Q: How does the peak hold function enhance force measurement accuracy?

A: The peak hold function captures and displays the maximum force applied during a test, allowing you to record crucial data points that can otherwise be missed in dynamic testing scenarios, thus improving data accuracy and analysis.
