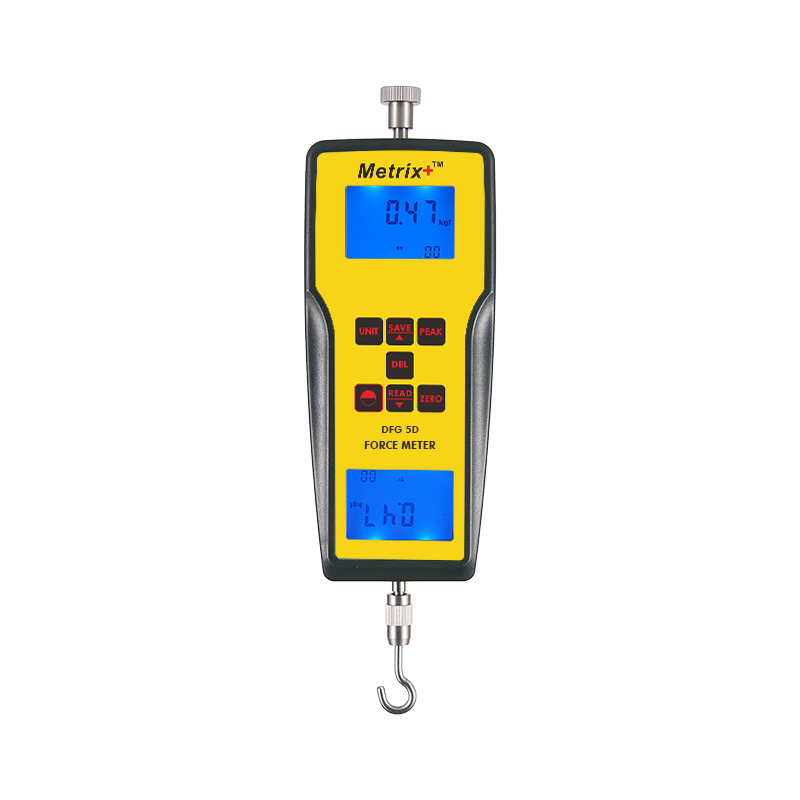

DFG 5D Digital Force Gauge

Name: DFG 5D Digital Force Gauge
Brand: MINOO IMPEX
Price: 22000.0 INR
Availability: InStock

Price 22000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DFG 5D Digital Force Gauge Specification

Outer Size
220 mm x 82 mm x 36 mm (Approx.)

Measuring Range
0-5 kgf (Newton, lb, kgf selectable)

Display
Backlit LCD, 4-Digit Digital Display

Frequency
Data sampling: 1000Hz

Thread
M6 (Measuring shaft thread)

Case
ABS Plastic Housing

Sensor Type
Load Cell

Material
ABS Plastic body with steel force shaft

Grade
Industrial

Application
Tension and Compression Force Measurement

Accuracy
0.2% F.S.

Weight
Approx. 650 g

User Interface
Push Button Controls

Operating Temperature
0°C to 40°C

Peak Hold Function
Yes

Standard Accessories
Carrying Case, AC Adapter, Various Test Attachments

Data Output
USB interface for PC connection

Mounting
Compatible with test stands

Battery Indicator
Yes, Low battery warning

Resolution
0.001 kgf / 0.01 N / 0.001 lb

Memory
Up to 1000 measured values

Power Supply
Rechargeable Ni-MH battery (8 hours typical use), or AC adapter

Auto Power Off
Yes, configurable

Overload Capacity
200% of F.S.

Units of Measurement
kgf, lbf, N

Display Update Rate
10 times/second

About DFG 5D Digital Force Gauge

DFG 5D Digital Force Gauge

This can be used to measure upto 49N/5kgf force, with real time and peak value, data storage, convertible measurement units, and 2 reversed LCD.

Features:

Various models from 10N-10,000N
2 reversed backlit LCD for easy readability
Data storage and Max data hold
Convertible measurement units: N, kg, lb
Battery or external power supply
Optional data logging

Applications:

Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.

Measuring Principle:

Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.

Precision Measurement for Diverse Applications

Achieve reliable force measurement for both tension and compression applications with the DFG 5D Digital Force Gauge. Its user-friendly push button controls, selectable units (kgf, N, lbf), and peak hold function make it ideal for laboratory, quality control, and industrial use. The robust construction and advanced features ensure consistent performance in demanding environments.

Efficient Data Management and Connectivity

Easily record and transfer data thanks to the built-in memory (up to 1000 readings) and USB interface. With a 10 Hz display update rate and a sampling frequency of 1000Hz, data is captured and displayed rapidly. The digital force gauge also features a battery indicator and configurable power-saving functions for uninterrupted field and lab use.

FAQ's of DFG 5D Digital Force Gauge:

Q: How do I transfer data from the DFG 5D Digital Force Gauge to a computer?

A: You can connect the DFG 5D Digital Force Gauge to your PC using the USB interface. This allows you to conveniently transfer and manage stored measurement data for further analysis and reporting.

Q: What is the typical battery life and how is the device powered?

A: The force gauge is powered by a rechargeable Ni-MH battery, offering up to 8 hours of typical use. Alternatively, it can operate using the included AC adapter, ensuring flexibility in various working conditions.

Q: When should I use the peak hold function?

A: The peak hold function is ideal for capturing and retaining the maximum force registered during a test. Use this feature when it is essential to identify the highest tension or compression force applied, such as during quality assurance processes.

Q: Where can I mount the DFG 5D force gauge for hands-free operation?

A: The device is compatible with test stands, which are commonly used in laboratory and industrial settings. Mounting on a stand facilitates stable, repeatable measurements and enhances convenience for high-volume testing.

Q: What are the main benefits of using the DFG 5D Digital Force Gauge in industrial settings?

A: This device delivers high-precision measurements (0.2% F.S.), fast data sampling, and multiple units of measurement, making it highly versatile across various industrial tasks. Its robust build, configurable features, and data management capabilities yield reliable and efficient workflow integration.

Q: How do I know when the battery needs charging?

A: The DFG 5D is equipped with a battery indicator and a low battery warning. These features alert you when the battery level is low, so you can recharge or switch to AC power, preventing unexpected interruptions.
