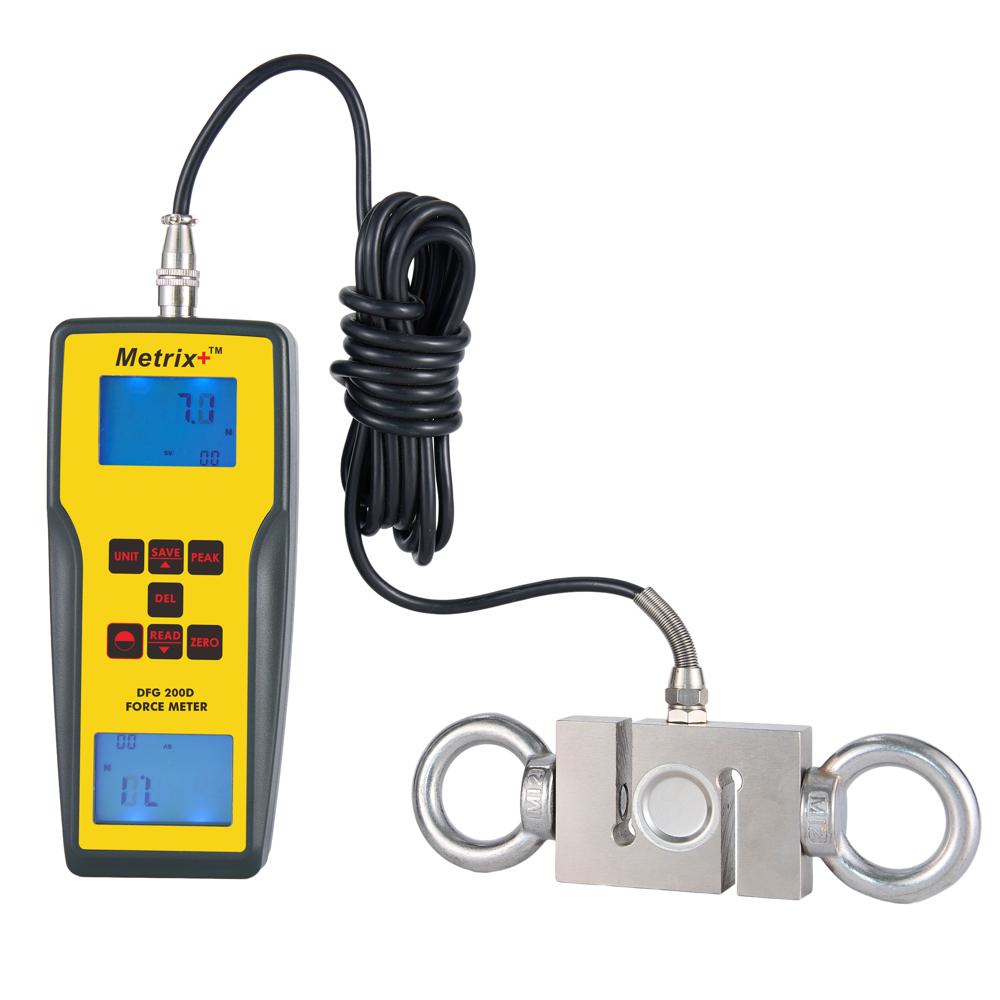

DFG 200D Digital Force Gauge

Name: DFG 200D Digital Force Gauge
Brand: MINOO IMPEX
Price: 32000.0 INR
Availability: InStock

Price 32000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DFG 200D Digital Force Gauge Specification

Display
LCD Digital Display with Backlight

Thread
M6 External Thread

Measuring Range
0-200N (Newton)

Frequency
Sampling rate: 1000Hz

Outer Size
160mm x 50mm x 30mm

Case
ABS Plastic

Sensor Type
Strain Gauge

Material
Stainless Steel (sensor), ABS Plastic (body)

Grade
Industrial

Application
Tension and Compression Force Measurement

Accuracy
±0.2% F.S.

Max. Display
200.00 N

Auto Power Off
Yes

Operating Temperature
0°C to 40°C

Mounting
M6 Mounting Hole at Back

Power Supply
Rechargeable Lithium Battery / AC Adapter

Data Output
USB / RS232

Calibration
Factory Calibrated with Certificate

Overload Capacity
150% F.S.

Peak Hold Function
Yes

Units of Measurement
N, kgf, lbf (selectable)

Resolution
0.01N

Net Weight
Approx. 500g

DFG 200D Digital Force Gauge About

DFG 200D Digital Force Gauge

This can be used to measure upto 1960N/200kgf force, with real time and peak value, data storage, convertible measurement units, and 2 reversed LCD.

Features:

Various models from 10N-10,000N
2 reversed backlit LCD for easy readability
Data storage and Max data hold
Convertible measurement units: N, kg, lb

Battery or external power supply
Optional data logging

Applications:

Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.

Measuring Principle:

Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.

High-Precision Measurements

Engineered for demanding industrial tasks, the DFG 200D offers a superb resolution of 0.01N and accuracy within 0.2% of full scale. Its advanced strain gauge sensor guarantees reliable, repeatable measurements for both tension and compression forces.

Versatile Connectivity and Power

Equipped with both USB and RS232 output options, this force gauge integrates easily into data logging systems. You can power it via a rechargeable lithium battery for mobility or use the AC adapter for continuous operation, providing flexibility across applications.

User-Friendly Operation

Switch between Newtons, kilogram-force, and pounds-force with simple controls. The device features an intuitive LCD display with backlight for easy reading, an automatic power-off function for battery conservation, and a handy peak hold mode to capture maximum readings during tests.

FAQ's of DFG 200D Digital Force Gauge:

Q: How do I calibrate the DFG 200D Digital Force Gauge?

A: The DFG 200D comes factory calibrated with a certificate, so no initial calibration is required. For ongoing accuracy, periodic recalibration by qualified service personnel is recommended according to your quality procedures.

Q: What measurement units can I select on this force gauge?

A: You can choose between Newton (N), kilogram-force (kgf), and pound-force (lbf) units, making it adaptable for different test standards and preferences.

Q: Where can I use the DFG 200D Digital Force Gauge?

A: This instrument is designed for industrial environments and laboratory testing, ideal for measuring tension and compression forces in quality control, mechanical testing, and research applications.

Q: What is the benefit of the peak hold function?

A: The peak hold function captures and displays the maximum force value during a test, helping users accurately record peak loads without missing critical data.

Q: How do I mount the device securely during testing?

A: The DFG 200D features an M6 mounting hole at the back and an M6 external thread, enabling stable fixture to test stands or customized setups for consistent and repeatable measurements.

Q: What process should I follow to access measured data?

A: Measured data can be output via USB or RS232 ports, allowing easy integration with computers or data acquisition systems for further analysis or record-keeping.
