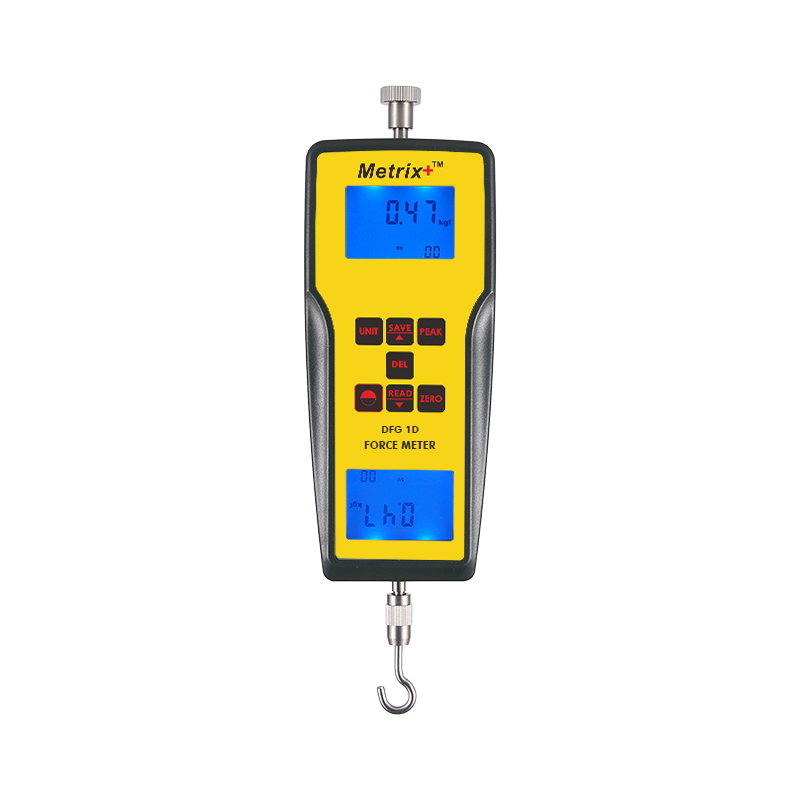

DFG 1D Digital Force Gauge

Name: DFG 1D Digital Force Gauge
Brand: MINOO IMPEX
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DFG 1D Digital Force Gauge Specification

Sensor Type
Strain gauge load cell

Bourdon Tube
Not applicable (digital instrument)

Frequency
Sampling rate up to 2000 Hz

Outer Size
Approx. 220mm x 80mm x 36mm

Thread
M6 Thread attachment

Display
Large backlit LCD display

Measuring Range
1N to 1000N (varies by model)

Case
Portable hard carrying case included

Material
ABS/Aluminum alloy

Seal Material
ABS housing

Grade
Industrial

Application
Tension and compression force measurement in industrial, laboratory, and quality control environments

Accuracy
0.2% F.S.

About DFG 1D Digital Force Gauge

DFG 1D Digital Force Gauge

This can be used to measure upto 9.8N/1kgf force, with real time and peak value, data storage, convertible measurement units, and 2 reversed LCD.

Features:

Various models from 10N-10,000N
2 reversed backlit LCD for easy readability
Data storage and Max data hold
Convertible measurement units: N, kg, lb
Battery or external power supply
Optional data logging

Applications:

Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.

Measuring Principle:

Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.

Versatile Measurement Capabilities

With selectable measurement units (N, kg, lb) and a wide force range (1N to 1000N, depending on model), the DFG 1D Digital Force Gauge is tailored to accommodate a variety of force measurement requirements. The large backlit LCD display ensures clarity during both tension and compression testing operations.

User-Friendly Interface & Data Management

Easily operate and store data with up to 500 measurements retained in memory. The USB and RS232 interfaces provide straightforward data transfer for analysis and record-keeping, enhancing workflow efficiency in busy environments.

Reliable and Durable for Industrial Use

Built to withstand demanding conditions, the DFG 1D is CE certified and encased in rugged ABS/aluminum alloy. Overload protection, Peak Hold function, and automatic power-off contribute to both device longevity and measurement reliability.

FAQ's of DFG 1D Digital Force Gauge:

Q: How does the DFG 1D Digital Force Gauge store and export measurement data?

A: The gauge can store up to 500 measurement values within its internal memory. Data can be exported for analysis or reporting via the integrated USB or RS232 interfaces, allowing seamless data transfer to computers or compatible devices.

Q: What types of force measurements can I perform with this device?

A: The DFG 1D is suitable for both tension and compression force measurements, making it ideal for various industrial, laboratory, and quality control applications.

Q: When should I recharge the Lithium-ion battery, and how long does it last?

A: It's best to recharge the battery when you notice a low battery warning or before extended measurement sessions. The gauge includes a charger and supports USB charging for flexible power options, helping to ensure uninterrupted operation.

Q: Where can the DFG 1D Digital Force Gauge be mounted for testing?

A: This device is designed to be securely mounted on custom test stands, using its M6 thread attachment, to ensure stable and repeatable measurements during testing procedures.

Q: What is the benefit of the Peak Hold function on the DFG 1D?

A: The Peak Hold function captures and displays the maximum force value recorded during a test, making it easy to identify critical measurement peaks without having to monitor readings constantly.

Q: How does the overload protection feature work, and why is it important?

A: The DFG 1D includes overload protection up to 150% of its full scale, safeguarding the sensor and electronics from accidental excessive loads, thus prolonging device lifespan and ensuring consistent accuracy.
