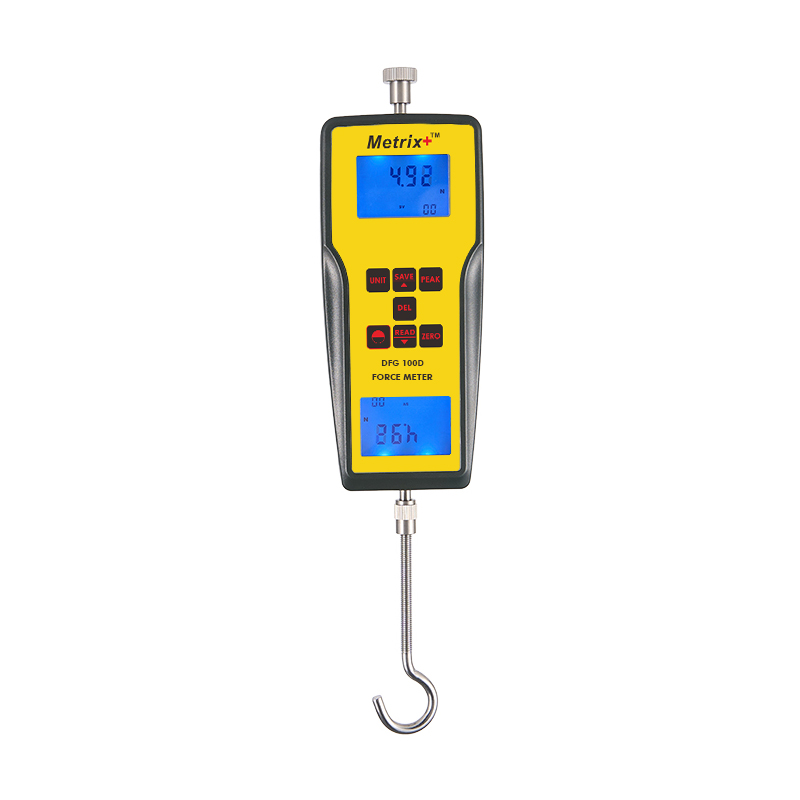

DFG 100D Digital Force Gauge

Name: DFG 100D Digital Force Gauge
Brand: MINOO IMPEX
Price: 26000.0 INR
Availability: InStock

Price 26000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DFG 100D Digital Force Gauge Specification

Thread
M6

Outer Size
220mm x 80mm x 40mm

Measuring Range
0-100N (Newton)

Case
ABS Plastic

Frequency
Sampling rate up to 1000 Hz

Sensor Type
High-precision Load Cell

Display
Large LCD Digital Display

Material
ABS Body, Stainless Steel Sensor

Seal Material
Silicone Rubber

Grade
Industrial

Application
Tension and Compression Force Measurement

Accuracy
±0.2% F.S.

Auto Power Off
Configurable

Peak Hold Function
Yes

Units
N, kg, lb selectable

Data Output
USB (to PC)

Storage Capacity
Up to 1000 Readings

Overload Protection
150% Full Scale

Weight
Approx. 650g

Operating Temperature
0°C to 40°C

Power Supply
Rechargeable Li-ion Battery, USB Charging

Accessories
Adapter, Carrying Case, Manual

Compliance
CE, ISO 9001

Mounting
Handheld or Fixture Mount

Resolution
0.01N

Calibration
Automatic and Manual Calibration

DFG 100D Digital Force Gauge About

DFG 100D Digital Force Gauge

This can be used to measure upto 980N/100kgf force, with real time and peak value, data storage, convertible measurement units, and 2 reversed LCD.

Features:

Various models from 10N-10,000N
2 reversed backlit LCD for easy readability
Data storage and Max data hold
Convertible measurement units: N, kg, lb

Battery or external power supply
Optional data logging

Applications:

Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.

Measuring Principle:

Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.

Precision and Performance

The DFG 100D Digital Force Gauge delivers high accuracy (0.2% F.S.) with a resolution of 0.01N, ensuring reliable tension and compression measurements for industrial applications. Its robust design, overload protection (150% F.S.), and stainless steel sensor guarantee durability and performance in demanding environments.

User-Centric Design

Featuring a large, easy-to-read LCD display and ergonomic ABS case, the DFG 100D is suitable for both handheld operations and fixture mounting. Its intuitive interface and USB connectivity simplify data transfer and configuration, making it ideal for frequent and precise force measurement tasks.

FAQ's of DFG 100D Digital Force Gauge:

Q: How do I calibrate the DFG 100D Digital Force Gauge?

A: The DFG 100D offers both automatic and manual calibration modes. To perform calibration, follow the instructions in the user manual, connect the required calibration weights, and use the menu interface to initiate the chosen calibration procedure.

Q: What is the main benefit of the peak hold function on this gauge?

A: The peak hold function captures and displays the highest force value measured during testing, enabling users to identify maximum loads and ensure quality control during tension or compression tests.

Q: When should I use the fixture mount rather than handheld operation?

A: Fixture mounting is recommended when you require stable, repeatable measurements or need both hands free, especially in industrial or laboratory settings where consistency is crucial.

Q: What happens if the measured force exceeds the gauge's capacity?

A: The DFG 100D features overload protection up to 150% of full scale. If the applied force exceeds this threshold, the device activates its protection measures to prevent sensor or system damage.

Q: How do I access and export stored measurement data from the device?

A: Stored readings (up to 1000) can be accessed and exported to a PC via the USB data output port. Use the supplied USB cable and follow the software instructions for data download and documentation.

Q: Where can I use the DFG 100D Digital Force Gauge effectively?

A: This force gauge is suitable for use in production, quality inspection, laboratory research, and field operations where accurate tension and compression measurements are essential.
