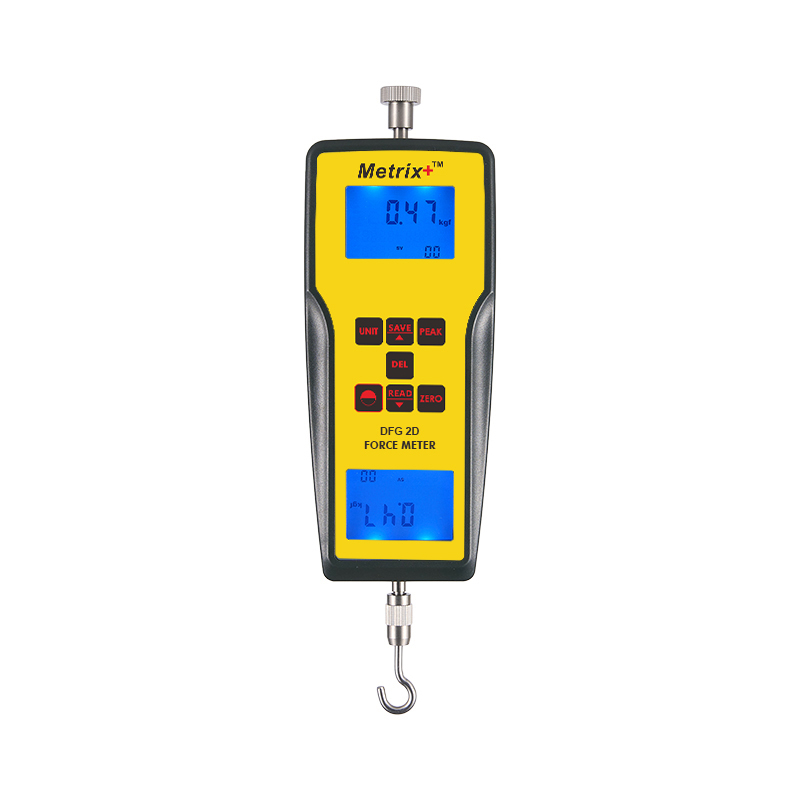

DFG 2D Digital Force Gauge

Name: DFG 2D Digital Force Gauge
Brand: MINOO IMPEX
Price: 21000.0 INR
Availability: InStock

Price 21000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DFG 2D Digital Force Gauge Specification

Frequency
Sampling rate up to 1000 Hz

Thread
M6 (standard for attachments)

Glass Size
NA (LCD Window 60 x 40 mm)

Measuring Range
0-2 kN (Can be customized)

Display
Large High-Resolution Digital LCD

Sensor Type
Strain Gauge Load Cell

Bourdon Tube
Not Applicable (Digital Sensor)

Outer Size
230 x 66 x 36 mm (Approx.)

Case
Rugged ABS Plastic Housing

Material
Stainless Steel Sensor & ABS Case

Working Presssure
Not Applicable (Force Gauge)

Seal Material
Nitrile Rubber (Sealed keypads)

Grade
Industrial

Application
Push/Pull Test, Research, Industrial Testing

Accuracy
±0.2% F.S.

Units of Measurement
N, kgf, lbf (Selectable)

Weight
Approx. 600g

Mounting
Mounting holes provided on back for fixture

Operating Temperature
0°C to 40°C

Memory Function
Stores Peak Hold and real-time values

Overload Protection
120% of Full Scale

Power Supply
Rechargeable Li-ion Battery / USB Power

Accessories Included
Measurement Attachments, Carrying Case, Charger

Communication Interface
USB & RS232 Output

DFG 2D Digital Force Gauge About

DFG 2D Digital Force Gauge

This can be used to measure upto 19.6N/2kgf force, with real time and peak value, data storage, convertible measurement units, and 2 reversed LCD.

Features:

Various models from 10N-10,000N
2 reversed backlit LCD for easy readability
Data storage and Max data hold
Convertible measurement units: N, kg, lb
Battery or external power supply
Optional data logging

Applications:

Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.

Measuring Principle:

Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.

Versatility and Ease of Use

Switch between Newtons, kilograms-force, and pounds-force effortlessly based on your testing needs. The DFG 2D gauge's mounting holes and ergonomic design accommodate a wide range of fixture setups, making it suitable for both stationary and portable applications. Included accessories, like attachments and a carrying case, simplify setup and transport.

Data Accuracy and Overload Protection

Featuring a precision strain gauge load cell, this digital force gauge delivers readings with an accuracy of 0.2% Full Scale. Overload protection up to 120% of the full range preserves the sensor's integrity, ensuring reliable measurements over time.

Comprehensive Memory and Connectivity

Store both peak and real-time measurement values directly on the device for future reference. USB and RS232 interfaces ensure straightforward data transfer to computers and other equipment, streamlining data analysis and reporting processes.

FAQ's of DFG 2D Digital Force Gauge:

Q: How can I switch between units of measurement on the DFG 2D Digital Force Gauge?

A: The gauge allows you to seamlessly select between Newtons (N), kilograms-force (kgf), and pounds-force (lbf) by using the settings menu, enabling flexibility for various testing standards.

Q: What benefits does the memory function provide for industrial testing?

A: The memory function lets you store both peak hold and real-time values, making it easier to record and review critical data points without manual note-taking, enhancing efficiency and accuracy during tests.

Q: When should the force gauge be recharged, and how do I power it?

A: Recharge the internal Li-ion battery when the display indicates low power or after extended periods of use. Alternatively, operate the device continuously using USB power, ensuring uninterrupted measurements.

Q: Where can I mount the DFG 2D Force Gauge in my workspace?

A: Mounting holes on the back of the gauge allow secure attachment to various fixtures, test stands, or custom apparatus-ideal for laboratory, production, or field testing environments.

Q: What is the process for transferring measurement data to a computer?

A: You can transfer stored data directly via the USB or RS232 output interface by connecting the gauge to a compatible device, facilitating straightforward data management and documentation.

Q: How does overload protection work in this device?

A: The force gauge incorporates overload protection up to 120% of its full-scale capacity, preventing damage to the sensor in case of accidental excessive force during measurement.

Q: What are the main applications and benefits of using this digital force gauge?

A: This device is suited for push/pull tests in research, industrial, and quality control applications. Its high accuracy, durable build, and intuitive user interface streamline force measurement tasks, saving time and minimizing errors.
