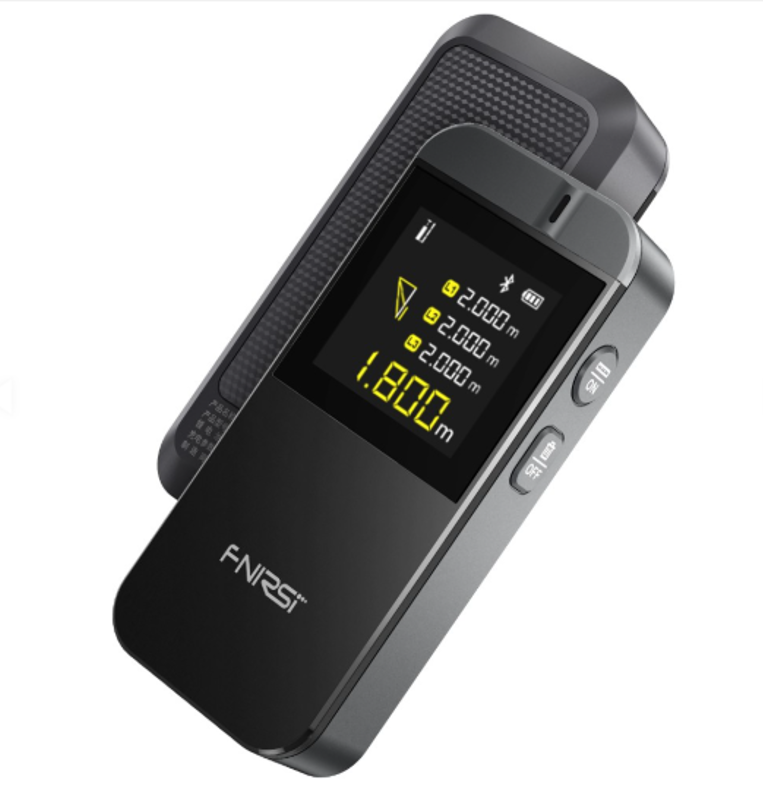

IR 40 Compact Laser Distance Meter

Name: IR 40 Compact Laser Distance Meter
Brand: MINOO IMPEX
Price: 4200.0 INR
Availability: InStock

Price 4200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

IR 40 Compact Laser Distance Meter Specification

Response Time
Less than 0.5 seconds

Operating Voltage
3V (2 x AAA batteries)

Application
Distance Measurement, Area and Volume Calculation

Humidity
Up to 80% RH, non-condensing

Equipment Type
Compact Laser Distance Meter

Accuracy
±2 mm

Display Type
LCD with backlight

Automation Grade
Manual

Temperature
Operating: 0°C to 40°C

Features
Fast Measurement, Compact Design, Easy Operation, Area/Volume Calculation

Resolution
1 mm

Mounting Type
Handheld

Measuring Range
40 meters

Power Supply
2 x AAA Batteries

Usage
Indoor and Outdoor Measurement

Machine Weight
Approximately 130 g (including batteries)

Control Mode
Manual

Storage Temperature
-20°C to 60°C

Auto Power Off
After 180s of inactivity

Protection Class
IP54 (dust and water resistant)

Dimensions
115 x 48 x 25 mm

Laser Type
Class II, 635 nm, <1mW

Addition/Subtraction Function
Yes

Battery Life
Up to 5,000 measurements

Data Hold Function
Yes

Continuous Measurement
Yes

IR 40 Compact Laser Distance Meter About

IR 40 Compact Laser Distance Meter

40m pocket-sized, compact laser distance meter with area/ volume, auto-rotate screen and mm precision.

Features:

2mm high precision
360 gravity sensor
Front and rear reference
Mobile app intelligent linkage
Millimeter precision
Auto flip gravity sensing
Measuring range: 0.05~40m
Resolution: 1mm
Laser class: Class
Laser type: 620-670nm
Accuracy: (2mm + 5x10^-5Dmm)

Precision Measuring at Your Fingertips

The IR 40 Compact Laser Distance Meter offers highly accurate measurements with a margin of error of only 2 mm, making it perfect for tasks demanding close tolerances. Its 40-meter range and quick response time enhance productivity on the job site or during home renovations. The easy-to-read backlit LCD and intuitive manual controls ensure seamless use, even in low-light environments.

Durability Meets Convenience

Engineered for real-world challenges, this distance meter boasts an IP54 rating, providing resistance against dust and splashes, ensuring long-lasting performance both indoors and outdoors. Its compact dimensions and lightweight design mean it fits conveniently in your pocket or tool belt, ready for any measuring application at a moment's notice.

FAQ's of IR 40 Compact Laser Distance Meter:

Q: How do I perform continuous measurements with the IR 40 Compact Laser Distance Meter?

A: To use the continuous measurement function, simply activate the mode via the control panel. The device will then display real-time distance readings as you move it, making it ideal for identifying minimum or maximum distances quickly and efficiently.

Q: What conditions is the IR 40 meter suitable for using in?

A: With an IP54 protection rating and the ability to operate in temperatures from 0C to 40C and humidity up to 80% RH (non-condensing), the device is well-suited for most indoor and outdoor environments, including construction sites and warehouses.

Q: What benefits does the data hold function provide?

A: The data hold function allows you to freeze the current measurement on the display, making it easy to record or reference readings even after you move the device, especially helpful when working alone or in hard-to-reach areas.

Q: When should the batteries be replaced?

A: The device can perform up to 5,000 measurements on a fresh set of two AAA batteries. It's advisable to replace the batteries when measurement performance declines or when the LCD backlight dims.

Q: What safety features does the IR 40 offer?

A: Equipped with a Class II laser (less than 1mW power), the device is safe for general use and has an automatic power-off function after 180 seconds of inactivity to extend battery life.

Q: How accurate is the IR 40 and what is its resolution?

A: This meter provides a high measurement accuracy of 2 mm with a fine resolution of 1 mm, ensuring reliable results for a wide range of measurement tasks.
