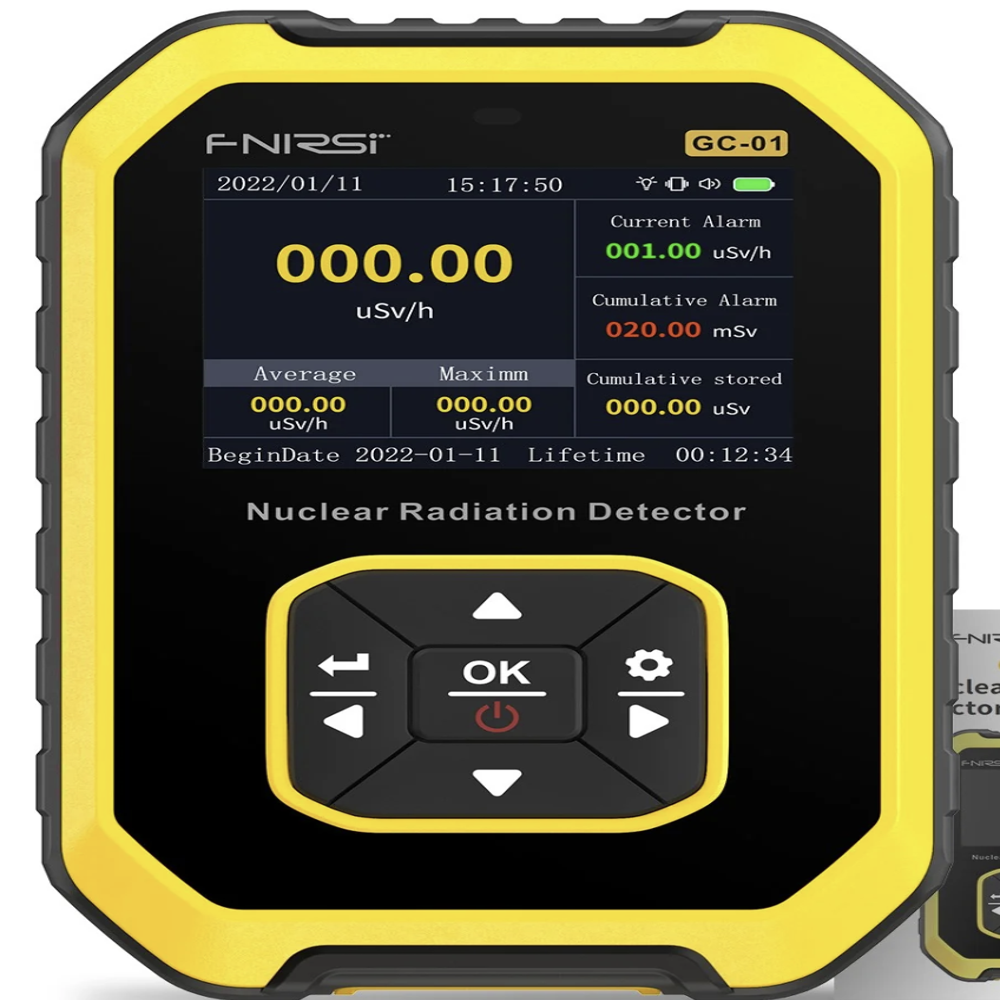

GC 01 Nuclear Radiation Detector

Name: GC 01 Nuclear Radiation Detector
Brand: MINOO IMPEX
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GC 01 Nuclear Radiation Detector Specification

Power Supply
Built-in rechargeable battery

Temperature
-10C to 50C

Response Time
2 seconds

Measuring Range
0.00Sv/h~9.99mSv/h

Mounting Type
Handheld

Resolution
0.01 Sv/h

Accuracy
10%

Test Range
0.00Sv/h~9.99mSv/h

Features
Portable, lightweight, fast response

Humidity
95% (non-condensing)

Max Height
118 mm

Application
Environmental radiation monitoring, material screening

Automation Grade
Manual

Display Type
LCD digital display

Interface Type
Micro USB (charging)

Operating Voltage
DC 3.7V

Equipment Type
Nuclear Radiation Detector

Usage
Radiation detection

Machine Weight
170 g

Control Mode
Manual

Material
ABS plastic

Calibration
Factory calibrated

Battery Life
Up to 50 hours (continuous use)

Charging Time
Approx. 4 hours

Storage Temperature
-20°C to 60°C

Dimensions
118 x 60 x 28 mm

Data Output Format
Audible and visual alarm

Sensor Type
Geiger-Muller tube

Packaging
Individual color box

Alarm Threshold
Adjustable

About GC 01 Nuclear Radiation Detector

GC 01 Nuclear Radiation Detector

GC-01 Nuclear radiation detector uses a higher-precision Geiger-Miller counter Counter for detecting the intensity of ionizing radiation (beta particles, gamma rays and x-rays). Using a gas tube or a small chamber as a probe when the voltage applied to the probe reaches a certain range, each time the ray is ionized in the tube to produce a pair of ions, it can be amplified to produce an electric pulse of the same size and recorded by the connected electronic device, the number of rays per unit time thus measured. The alarm threshold measurement rate can be arbitrarily selected.

Features:

Versatile Detection Capabilities: Detects ray, X ray and ray types of radiation, making it a versatile tool.

Hydrogen Cyanide Detector| Air Quality Tools| High Precision Geiger-Miller Counter: Equipped with a high-precision Geiger-Miller counter for accurate detection of ionizing radiation.

Wide Energy Range Detection: Detects a broad energy range from 48keV to 1.5Mev with 30% accuracy for 137Cs-

Multiple Alarm Modes: Features light, vibration, and sound alarms for immediate alerts on radiation levels.

Extensive Dose Equivalent Measurement: Measures cumulative dose equivalent from 0.00Sv to 500.0mSv with precision.

Precise Detection with Geiger-Muller Technology

The GC 01 Nuclear Radiation Detector employs a specialized Geiger-Muller tube sensor for accurate and reliable radiation measurement. Its fast response time-less than two seconds-ensures you receive timely updates about radiation levels. Whether for environmental monitoring or material screening, this detector is engineered for precision and consistency in various settings.

User-Friendly and Portable Design

With dimensions of 118 x 60 x 28 mm and a lightweight build of 170 grams, the GC 01 is highly portable and easy to operate. The ergonomic handheld device fits comfortably in your hand, making it ideal for on-the-go use. The intuitive LCD digital display and simple manual controls allow users of all experience levels to utilize it effectively.

Reliable Performance and Long Battery Life

Enjoy up to 50 hours of continuous use thanks to the built-in rechargeable battery. The quick, four-hour charging cycle via Micro USB ensures minimal downtime. Engineered with durable ABS plastic and designed to operate in temperatures ranging from -10C to 50C, this detector is made for tough environments and daily use.

FAQ's of GC 01 Nuclear Radiation Detector:

Q: How do I operate the GC 01 Nuclear Radiation Detector?

A: To use the GC 01, simply turn on the device using the manual control mode. The detector will begin monitoring radiation levels, displaying readings on the LCD digital display. Both audible and visual alarms will alert you if radiation exceeds your set threshold, which can be adjusted according to your needs.

Q: What types of radiation does the GC 01 detect?

A: The GC 01 is equipped with a Geiger-Muller tube, allowing it to detect alpha, beta, and gamma radiation. This makes it suitable for environmental monitoring, material screening, and general radiation detection tasks.

Q: When should I calibrate the GC 01 detector?

A: Each GC 01 detector comes factory calibrated, so no immediate calibration is required upon purchase. For optimal accuracy, follow periodic calibration recommendations provided in the user manual or consult your distributor if exposure to extreme environments occurs.

Q: Where can I use this radiation detector?

A: This device is versatile and can be used indoors or outdoors in temperatures between -10C and 50C. Its rugged ABS plastic casing and humidity tolerance (95%, non-condensing) make it ideal for laboratories, environmental surveys, border control, and industrial inspections.

Q: What is the process for charging the device?

A: Charging is straightforward: connect the device's micro USB port to a suitable power source. The detector charges fully in approximately four hours, providing up to 50 hours of continuous monitoring on a full charge.

Q: What are the main benefits of using this detector?

A: Key benefits include fast response time (2 seconds), high measurement accuracy (10%), adjustable alarm thresholds for safety, and a lightweight, portable design. Its extended battery life and robust build ensure it can be reliably used in harsh or remote locations.
