DPOX180H Digital Storage Oscilloscope

Name: DPOX180H Digital Storage Oscilloscope
Brand: MINOO IMPEX
Price: 27376.0 INR
Availability: InStock

Price 27376.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

DPOX180H Digital Storage Oscilloscope Specification

Display Type
7 Inch Color TFT LCD Display

Response Time
Real-Time Sampling

Automation Grade
Semi-Automatic

Temperature
0C to 40C

Humidity
85% RH

Max Height
Approx. 150 mm

Interface Type
USB, LAN, RS232

Resolution
8 bit (vertical) / 1 ns (time base)

Test Range
DC to 100 MHz

Accuracy
3% (vertical) of full scale

Frequency
100 MHz

Operating Voltage
220V

Application
Signal Measurement & Analysis

Mounting Type
Bench Top

Features
Auto Set, Waveform Storage, Math Functions, FFT, Cursor Measurement

Port Size
BNC

Measuring Range
2 mV/div to 10 V/div

Power Supply
220V AC 10%, 50Hz

Equipment Type
Digital Storage Oscilloscope

Usage
Electronic Measurement and Testing

Capacity
2 Channel, 1 GSa/s

Machine Weight
4 Kg (Approx.)

Control Mode
Manual & Auto

About DPOX180H Digital Storage Oscilloscope

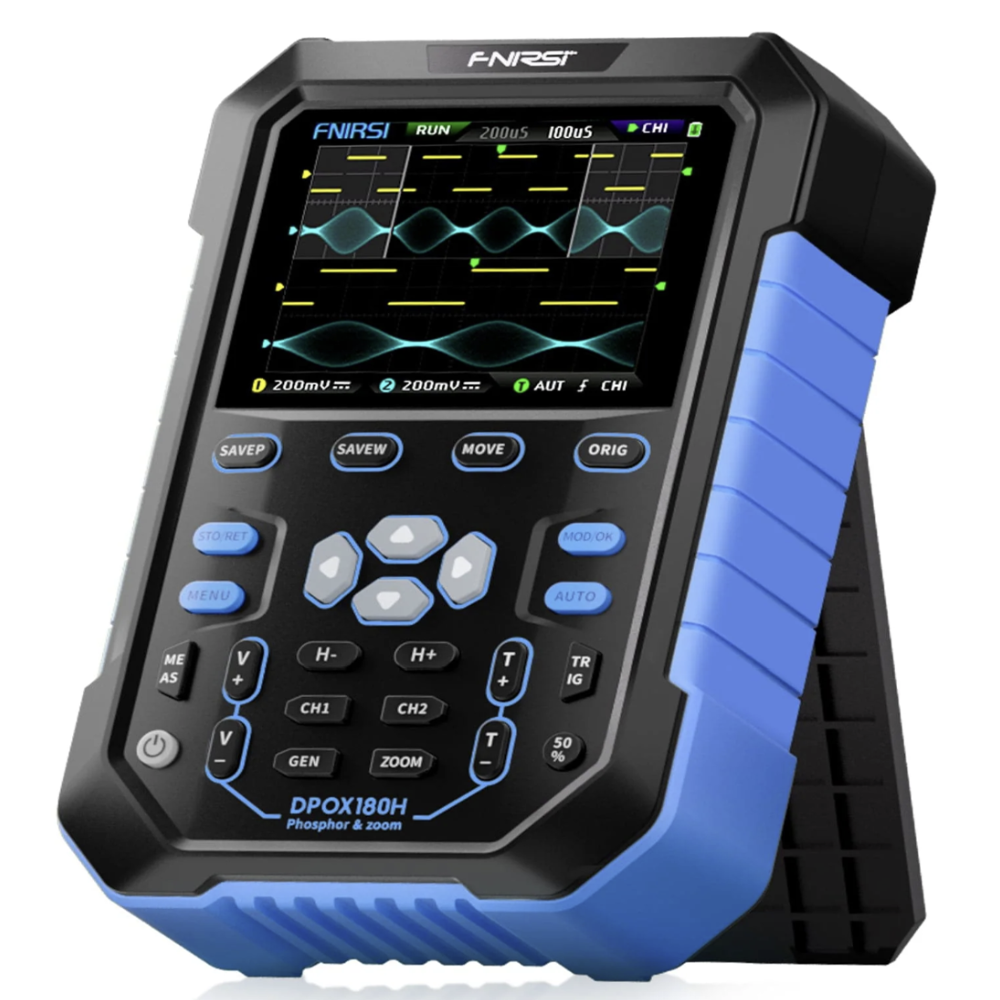

DPOX180H Digital Storage Oscilloscope

Features:

Digital Phosphor Oscilloscope:The DPOX180H minimizes noise and waveform distortion with advanced digital phosphor technology. The color temperature display enhances signal clarity, showing signal distribution and rise/fall times. X-Y mode allows easy comparison of amplitude, frequency, and phase between two signals.

Professionally Designed:Features a 2-channel handheld oscilloscope and DDS signal generator with 180MHz bandwidth and 500MSa/s sampling rate. It includes an innovative digital trigger system, cursor measurement, 5mV sensitivity, 50,000 wfm/s refresh rate, a 2.8-inch IPS display, built-in 4.2V/3000mAh battery, auto shutdown, and high-voltage protection.

Unique and Innovative Features:Offers an adjustable automatic bandwidth limit that adapts to the time base range, filtering out noise for clearer signal analysis. Its adaptive high-frequency rejection suppresses high-frequency components, ensuring stable triggering even with large noise signals.

Function Signal Generator:It has a 20M DDS signal generator with 14 waveforms, 1VPP amplitude, 20MHz sine wave frequency, and 10MHz for other waveforms. Its chopping technology offers more accurate, realistic signal output than traditional generators.

Easily Measuring:Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment. FFT spectrum display.

Storage Function:One click to save screenshot or waveform, with its own data storage, you can view the saved screenshot file and waveform data. Data can be exported via USB connection to a computer.

Versatile Signal Analysis

The DPOX180H Digital Storage Oscilloscope provides comprehensive signal measurement and analysis thanks to a wide bandwidth of up to 100 MHz and a fast 1 GSa/s real-time sampling rate. The versatile range of vertical sensitivity and horizontal scales allows detailed observation of both rapid transients and slow signals, making it suitable for diverse testing applications.

Flexible Data Handling and Display

With waveform storage, screen capture, and Math/FFT functions, the oscilloscope facilitates easy data recording and analysis. The 7-inch color TFT LCD display delivers clear, vibrant visuals, while connectivity through USB, LAN, and RS232 interfaces extends data management options. Multi-language support ensures accessibility for users worldwide.

User-Friendly Operation and Advanced Triggering

Equipped with both manual and auto control modes, the DPOX180H adapts to user needs, from beginners to professionals. Multiple trigger types like edge, pulse, and video enable precise event detection, ensuring accurate, repeatable measurements in semi-automatic, bench-top operation environments.

FAQ's of DPOX180H Digital Storage Oscilloscope:

Q: How does the DPOX180H oscilloscope store and recall captured waveforms?

A: The DPOX180H offers waveform storage and screen capture functions, allowing users to save measurements and display images directly to internal memory or external devices via USB. This enables easy retrieval and analysis for future reference.

Q: What are the main benefits of using the DPOX180H for electronic measurement and testing?

A: The DPOX180H provides high sampling rates and deep memory, ensuring accurate waveform capture. Advanced trigger types and measurement functions, combined with a clear color display and multi-language support, streamline testing workflows and improve analysis precision.

Q: What process should I follow to connect and operate the oscilloscope?

A: Simply connect your signal to the oscilloscope's BNC input using the included passive probes, select the relevant channel, and use the auto or manual control modes for setup. The intuitive control panel and on-screen navigation guide users through initial configuration and measurement.

Q: Where can the DPOX180H oscilloscope be deployed most effectively?

A: This oscilloscope is ideal for use on the bench top in laboratories, educational institutions, or service centers where electronic measurement and signal analysis are required, thanks to its robust build and wide application range.

Q: What usage features enhance the DPOX180H's measurement efficiency?

A: Features such as Auto Set, Math/FFT analysis, cursor measurements, and multi-type triggering improve efficiency by automating setup, enabling advanced analysis, and facilitating precise measurement tasks.

Q: When should I use the manual versus automatic control modes?

A: Use automatic mode for quick, general measurements or when familiarizing yourself with the device. Manual mode is best for experienced users who need to precisely configure settings for advanced or specialized measurements.

Q: How is safety ensured while operating the DPOX180H oscilloscope?

A: The instrument complies with IEC61010-1 and CAT I safety standards. Its robust input impedance and designed humidity/temperature ranges guarantee reliable operation and protection for both the user and the equipment.
