HRM 10 Battery Voltage Internal Resistance Tester

Name: HRM 10 Battery Voltage Internal Resistance Tester
Brand: MINOO IMPEX
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HRM 10 Battery Voltage Internal Resistance Tester Specification

Temperature
0C ~ 40C

Port Size
Standard banana jack

Humidity
85% RH

Features
Portable, fast test, clear display, auto/manual selection

Application
Battery voltage and internal resistance measurement

Accuracy
Voltage: (0.5%+5); Resistance: (2%+2)

Response Time
2 seconds

Test Range
Voltage: 0-20V; Resistance: 0-200m

Measuring Range
Voltage: 0-20V; Resistance: 0-200m

Number of Specimens
1

Interface Type
Banana jack

Display Type
LCD digital display

Automation Grade
Semi-Automatic

Operating Voltage
DC 6V

Mounting Type
Handheld

Power Supply
DC 6V (AA batteries x 4 pcs)

Resolution
Voltage: 0.001V; Resistance: 0.001m

Usage
Battery maintenance, quality inspection

Machine Weight
About 520g

Test Speed
5 tests/sec (max)

Control Mode
Auto/Manual

Battery Type Compatibility
Lead-acid, lithium, nickel-metal hydride, nickel-cadmium, etc.

Input Impedance
>10M

Equipment Type
Battery Internal Resistance Tester

Sampling Rate
5 times per second

Overload Indication
Display Error

Data Hold Function
Available

Warranty Period
1 Year

Dimension (LWH)
170mm 80mm 35mm

Safety Compliance
CE certified

Measurement Method
Four-wire (Kelvin) method

Low Voltage Indication
LCD display warning

About HRM 10 Battery Voltage Internal Resistance Tester

HRM 10 Battery Voltage Internal Resistance Tester

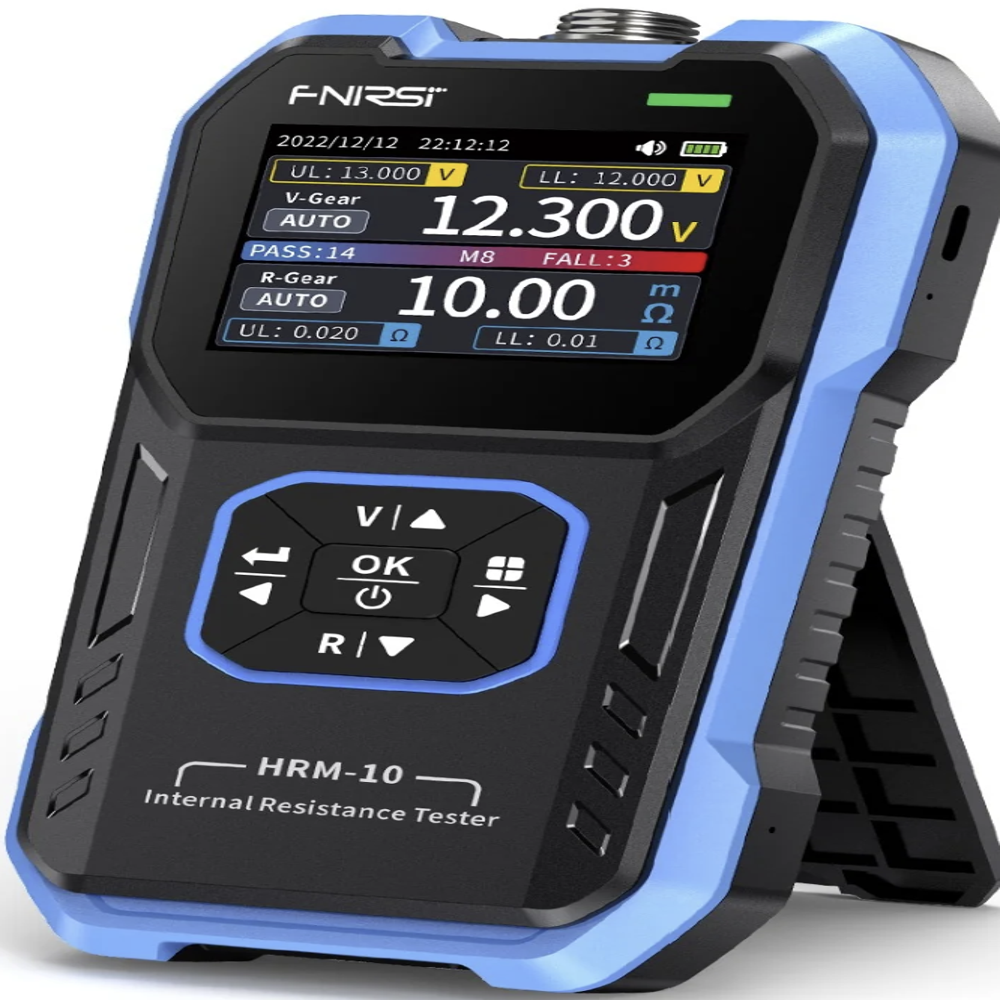

FNIRSI "HRM-10" is our company's first handheld high-precision battery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

Features:

Voltage Internal Resistance Battery Tester: FNIRSI battery tester can automatically test internal resistance and voltage value at the same time. The measured value can be used to determine whether the battery quality has decreased.

TFT HD Color Display: The display adopts advanced color HD technology and excellent layout. Compared with traditional monochrome displays, it can present test results more clearly and vividly, greatly enhancing the user's measurement experience.

Accurate Measurement: Adopts customized Kelvin four-wire connection method to avoid wire and contact resistance and improve measurement accuracy. Users can also manually adjust the voltage and resistance range.

Wide Application Range: Suitable for all kinds of batteries. Car battery tester, household battery. It supports historical records and export data tables of historical measurements. View 8 sets of voltage and resistance values to batch select batteries.

LED Display Handheld Meter: The resistance measurement range is up to 200 and the voltage measurement range is up to 100 V. The device must not be used with a DC voltage higher than 100V. Do not apply AC voltage under any circumstances.

Reliable Battery Analysis-On the Go

Designed for technicians and maintenance teams, the HRM 10 puts precision battery testing in the palm of your hand. The device's compact profile ensures effortless portability, while auto and manual control modes provide flexibility for diverse testing scenarios. With clear, fast readings displayed on its LCD screen, even in challenging environments, users can diagnose battery performance quickly and confidently.

Accurate, Fast, and Versatile Measurements

Utilizing the four-wire Kelvin method, the HRM 10 achieves high-accuracy evaluation of both voltage (0-20V) and internal resistance (0-200m) within seconds. Its broad compatibility allows testing of multiple battery chemistries, making it an indispensable tool across battery maintenance, quality inspection, and automated processes. The tester's data hold function ensures readings are easily recorded and compared.

FAQ's of HRM 10 Battery Voltage Internal Resistance Tester:

Q: How is the voltage and internal resistance of a battery measured by the HRM 10 Tester?

A: The HRM 10 utilizes the four-wire Kelvin method, which minimizes lead resistance and ensures highly accurate internal resistance and voltage measurements. Simply connect the included probes to both terminals of the battery to conduct tests.

Q: What types of batteries can I test with the HRM 10?

A: The HRM 10 is compatible with various battery types, including lead-acid, lithium, nickel-metal hydride, and nickel-cadmium batteries, accommodating a broad spectrum of battery maintenance and inspection needs.

Q: When does the HRM 10 indicate errors or low battery conditions?

A: If an overload occurs during measurement, the tester displays an error. For low battery conditions, the LCD provides a dedicated warning to ensure users replace the AA batteries promptly for accurate operation.

Q: Where can this battery tester be utilized?

A: Owing to its portable, handheld design, the HRM 10 can be used in workshops, laboratories, battery manufacturing, quality control departments, and on-site maintenance operations.

Q: What is the data hold function, and how does it work?

A: The data hold function allows users to freeze the measurement displayed on the LCD screen. This is particularly useful when recording or comparing results, especially in fast-paced or multi-battery testing environments.

Q: What benefits does using the HRM 10 Tester provide?

A: Users benefit from rapid, precise assessments of battery health, time-saving automated or manual operation, portability, and compatibility with multiple battery types-all in a CE-certified, reliable handheld device.
