5012H Digital Storage Oscilloscope

Name: 5012H Digital Storage Oscilloscope
Brand: MINOO IMPEX
Price: 13600.0 INR
Availability: InStock

Price 13600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

5012H Digital Storage Oscilloscope Specification

Humidity
< 85% RH (non-condensing)

Display Type
5.6 inch color LCD

Mounting Type
Bench-top

Application
Electronics Testing, Education, R&D, Maintenance

Automation Grade
Manual

Equipment Type
Digital Storage Oscilloscope

Interface Type
USB Host/Device, LAN

Measuring Range
DC to 100 MHz

Power Supply
100-240V AC, 50/60Hz

Temperature
0C to 50C

Operating Voltage
100-240V AC

Accuracy
(3% reading + 0.05 div)

Port Size
BNC Input

Resolution
8 bits

Features
2 Channels, Auto-Set, Waveform Math, Storage, Cursor Measurement

Frequency
100 MHz

Usage
Oscilloscope Measurement

Machine Weight
Approx. 2.1 kg

Control Mode
Digital

Input Impedance
1 M 2%, 20 pF 3 pF

Dimensions
310 mm 150 mm 120 mm

Trigger Modes
Edge, Pulse, Video, Slope, Alternate

Channels
2

Record Length
40kpts per channel

Horizontal Time Base Range
2ns/div ~ 50s/div

Vertical Sensitivity Range
2mV/div ~ 5V/div

Sample Rate
1GSa/s Real-Time

Rise Time
3.5 ns

Save/Recall Function
Waveform & Setups to USB Storage

Language Support
Multi-language menu

5012H Digital Storage Oscilloscope About

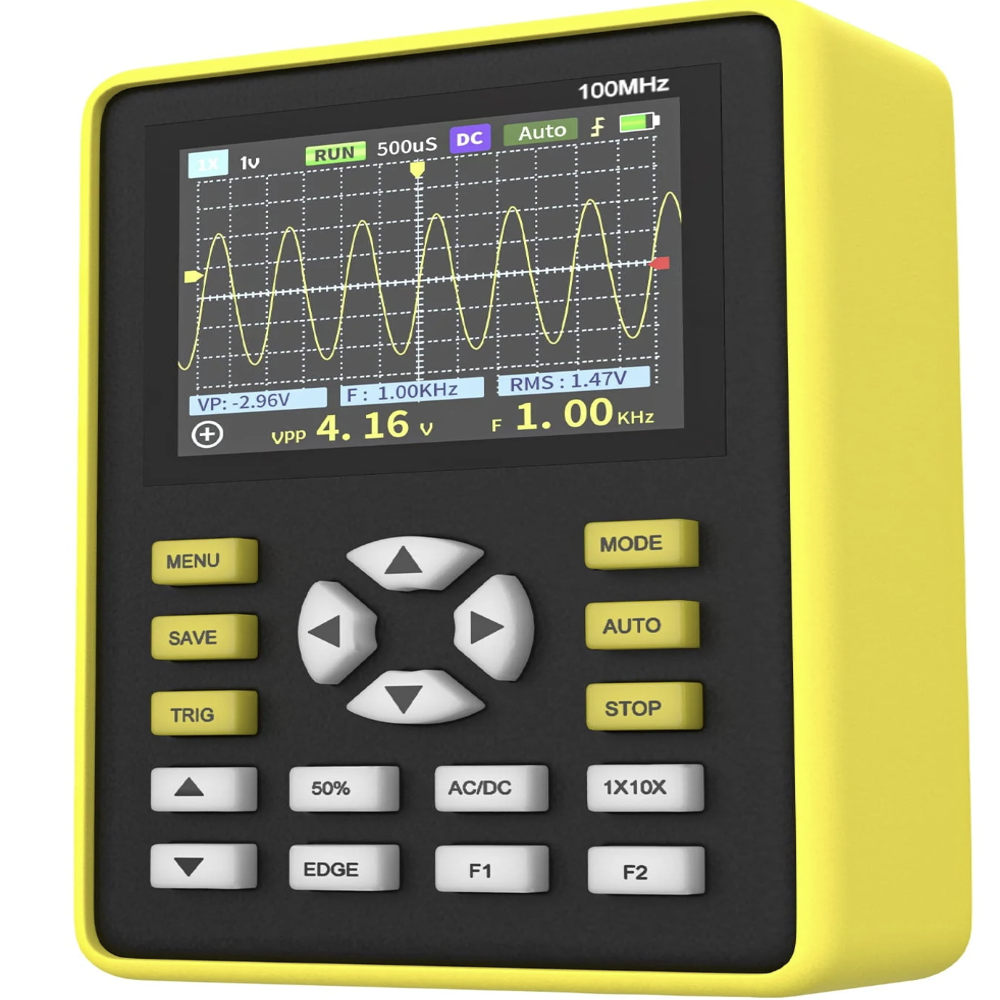

5012H Digital Storage Oscilloscope

Features:

Versatile, practical, cost-effective handheld oscilloscope for maintenance and R&D industries
Real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth
Full trigger function for periodic analog and non-periodic digital signals
Built-in high voltage protection module (up to 400V continuous voltage, 600V peak voltage)
Large time base scan mode for monitoring slow level changes
High-efficiency one-button AUTO for easy waveform display
High-definition LCD screen with 320*240 resolution
Convenient waveform storage function with 64M built-in storage space (up to 2000 waveform pictures)
Powerful waveform file manager with thumbnail browsing, viewing, and deletion capabilities
Built-in 3000mAh lithium battery for 8 hours of continuous use
High-quality silicone protective cover for anti-skid, anti-shock, and shockproof properties, providing comprehensive protection
Non-toxic and lead-free environmental protection
Soft texture for comfortable feel

Precision Measurement and Fast Sampling

The 5012H delivers real-time sampling up to 1GSa/s and offers a wide measuring range from DC to 100 MHz, making it ideal for capturing transient and high-frequency signals with remarkable accuracy. Its 8-bit resolution and vertical sensitivity (2mV/div to 5V/div) support detailed signal inspection across diverse applications.

User-Friendly Interface and Data Management

Equipped with a 5.6-inch color LCD and intuitive multi-language menu, the 5012H oscilloscope ensures effortless operation and clear data visualization. Integrated USB and LAN ports enable fast waveform and setup saving, supporting efficient data transfer and documentation in both educational and professional settings.

Versatile Features for Comprehensive Testing

Beyond core oscilloscope functions, the device includes auto-set, waveform math, cursor measurements, and various trigger modes (edge, pulse, video, slope, alternate) for versatile, precise analysis. Designed for bench-top use, it's perfect for hands-on experimentation, service, and research purposes.

FAQ's of 5012H Digital Storage Oscilloscope:

Q: How do I save and recall waveforms or setups on the 5012H oscilloscope?

A: You can easily save and recall waveforms and setup configurations by connecting a USB storage device to the USB host port. Use the oscilloscope's Save/Recall function from the operational menu to select, store, and retrieve data as needed.

Q: What applications are best suited for the 5012H Digital Storage Oscilloscope?

A: This oscilloscope is ideal for electronics testing, educational demonstrations, research and development, and general maintenance, offering accurate measurement and analysis for both basic and advanced signal diagnostics.

Q: When should I use different trigger modes such as edge, pulse, or video?

A: Trigger modes help isolate specific types of events in your signal. Use edge triggers for basic waveform capture, pulse triggers for analyzing timed events, and video triggers for signals with video content. Alternate and slope triggers further expand flexibility for complex signal conditions.

Q: Where can I access the multi-language menu, and what languages are supported?

A: The multi-language menu is accessible via the main setup or utility menu on the oscilloscope's display. While specific language options may vary, the 5012H is built to accommodate users in diverse regions, supporting multiple common international languages.

Q: What is the benefit of the 1GSa/s sampling rate in practical measurements?

A: A high sampling rate like 1GSa/s allows the oscilloscope to capture fast, transient events with increased detail and fidelity. This ensures that rapid changes in signals are accurately visualized for thorough analysis, crucial for modern electronic circuit debugging.

Q: How is the oscilloscope mounted and what is its recommended operating environment?

A: Designed as a bench-top device, the 5012H should be placed on a stable, flat surface. It operates reliably at temperatures between 0C and 50C and in non-condensing humidity below 85% RH, making it suitable for laboratories, workshops, and educational institutions.
