DSO 152 Digital Storage Oscilloscope

Name: DSO 152 Digital Storage Oscilloscope
Brand: MINOO IMPEX
Price: 5600.0 INR
Availability: InStock

Price 5600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

DSO 152 Digital Storage Oscilloscope Specification

Test Range
DC, AC, AC+DC Coupling

Application
General Purpose Electronic Measurement

Interface Type
USB, LAN

Power Supply
100V240V AC, 50/60 Hz

Temperature
0C to 40C

Frequency
Up to 150 MHz

Measuring Range
1 mV/div to 20 V/div

Features
Auto Measurement, Save/Recall, Probe Attenuation, Math Functions

Display Type
7-inch (800x480) TFT LCD

Mounting Type
Bench-top

Accuracy
3% (vertical system)

Resolution
8-bit (vertical)

Operating Voltage
100V240V

Automation Grade
Semi-Automatic

Port Size
USB 2.0

Humidity
< 85% RH (noncondensing)

Equipment Type
Digital Storage Oscilloscope

Usage
Oscilloscope, Waveform Analysis

Capacity
150 MHz Bandwidth

Machine Weight
Approx. 2.5 kg

Test Speed
Up to 25 wfms/s

Control Mode
Digital / Manual

Waveform Storage
24 waveforms

Waveform Update Rate
Up to 25,000 wfms/s

Probe Compensation Output
1 kHz, 2 V (20%) square wave

Input Coupling
DC, AC, GND

Vertical Sensitivity
1 mV/div ~ 20 V/div (at input BNC)

Memory Depth
40 kpts per channel

Trigger Types
Edge, Pulse Width, Video

Input Impedance
1 M 2%, 20 pF 3 pF

Real-time Sample Rate
1 GSa/s

Horizontal Scale
5 ns/div ~ 100 s/div

Channels
2 Independent Input Channels

Safety Standards
IEC61010-1, CAT I, Pollution Degree 2

Language Support
Multi-language

DSO 152 Digital Storage Oscilloscope About

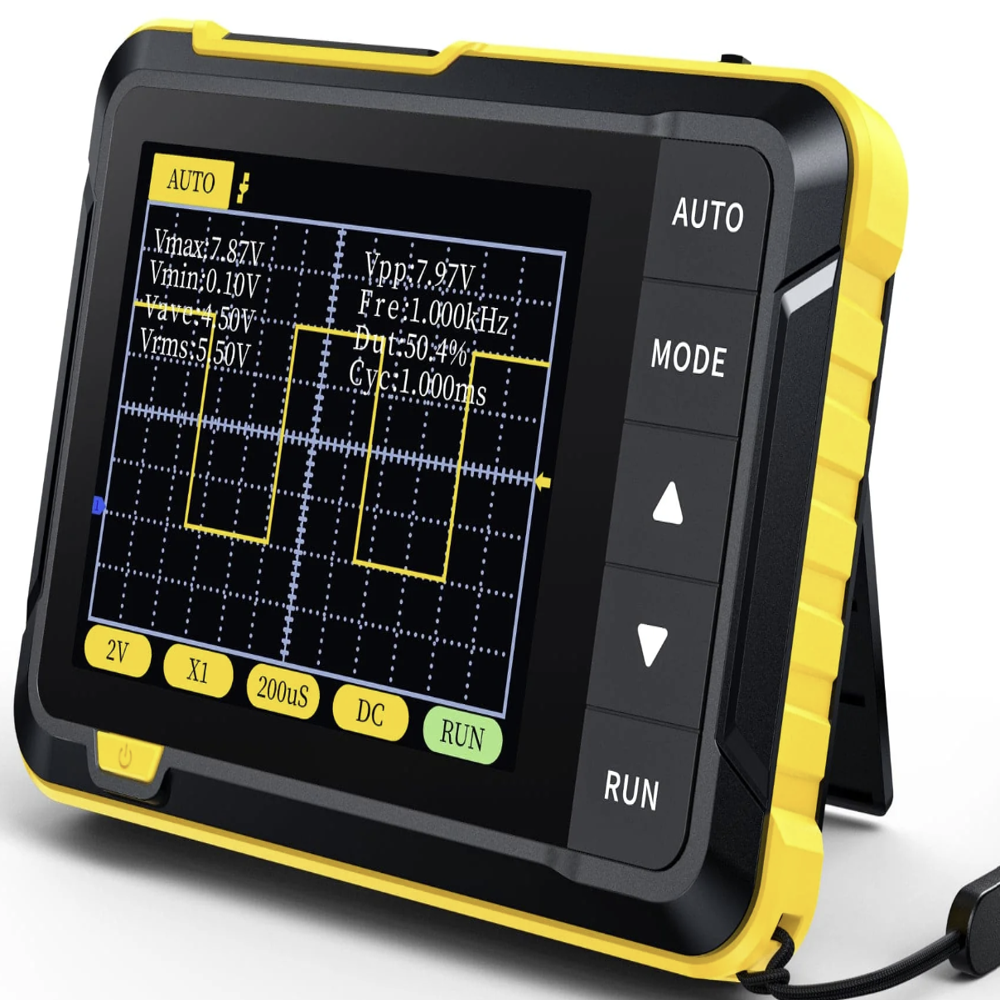

DSO 152 Digital Storage Oscilloscope

Features:

Faster sampling speed: FNIRSI DSO152 mini oscilloscope has a real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth. The 10 x probe can measure up to 800 VPP, which is equivalent to 280 V AC. Voltages up to 400 V can be measured.

Professional Designed: Features with full trigger function (AUTO/Normal/Single). Works perfectly for both periodic analog signals and aperiodic digital signals. 2.8 inch LCD display with a resolution of 320*240, clear and easy to observe.

Portable Mini Oscilloscope: Pocket oscilloscope is an Assembled finished Machine, lightweight and easy to carry, it can avoid assembling welding process problems. Applicable to the maintenance industry and R&D education industry.

Easy Measuring: Equipped with efficient one-key AUTO setting of all parameters, the measured waveform can be displayed without cumbersome adjustment. Long press the AUTO button to quickly calibrate the baseline,fast measurement of waveforms.

Longer Battery Life: Automotive oscilloscope has a built-in 1000 mAh high-quality lithium battery, which can be used continuously for about 4 hours after being fully charged. Type-C interface supports charging and data transmission, firmware upgrade.

Robust Measurement Capabilities

Equipped with two independent input channels, a real-time sample rate of 1 GSa/s, and a 150 MHz bandwidth, the DSO 152 Digital Storage Oscilloscope is optimized for a wide range of electronic testing. The memory depth of 40 kpts per channel allows for detailed waveform capture, making it suitable for complex signal analysis.

Versatile Trigger and Display Features

With advanced trigger types-including edge, pulse width, and video-the DSO 152 ensures precise signal synchronization and event capture. Its 7-inch TFT LCD with an 800x480 resolution delivers crisp waveform visualization, while the 8-bit vertical resolution provides reliable signal detail across the 1 mV/div to 20 V/div range.

User-Friendly Design and Interface

Featuring both digital and manual control modes, intuitive navigation, and multi-language support, the DSO 152 is accessible for users of varying experience levels. Connectivity is enhanced by USB and LAN ports, allowing for seamless waveform storage and remote monitoring, while its bench-top form factor ensures stability during operation.

FAQ's of DSO 152 Digital Storage Oscilloscope:

Q: How do I operate the DSO 152 Digital Storage Oscilloscope for waveform analysis?

A: To analyze waveforms, connect your signal sources to the oscilloscope's BNC input channels. Use the 7-inch display to view real-time signals, and adjust vertical sensitivity, time base, and trigger settings as needed. Employ the auto measurement and math functions for detailed signal analysis, and save or recall waveforms for later reference.

Q: What are the main benefits of using the DSO 152 in a laboratory environment?

A: The DSO 152 offers high accuracy (3%) and a broad measurement range (1 mV/div to 20 V/div), making it ideal for general-purpose diagnostics. Its user-friendly interface, multi-language support, and capability to store up to 24 waveforms streamline testing processes, while digital/manual modes and advanced triggering enhance efficiency and reliability.

Q: When should I use different trigger types on the DSO 152?

A: Select the trigger type based on your measurement needs: use edge trigger for basic signal capture, pulse width for examining specific pulse durations, and video trigger for analyzing video signals. Trigger flexibility enables you to isolate fast, intermittent, or complex events during troubleshooting or signal inspection.

Q: Where can I retrieve saved waveform data from the DSO 152?

A: Saved waveform data can be accessed directly on the oscilloscope's display using the save/recall function or transferred to a PC via the USB or LAN ports. This enables convenient offline analysis, data sharing, or documentation of results as needed for your application.

Q: What safety features does the DSO 152 provide for users?

A: The DSO 152 complies with IEC61010-1 safety standards (CAT I, Pollution Degree 2) and features input protection for voltages referenced to ground. Proper use within the specified humidity (<85% RH, non-condensing) and temperature (0C to 40C) ranges further ensures safe operation.

Q: How does the probe compensation output enhance testing accuracy?

A: The built-in 1 kHz, 2 V (20%) square wave probe compensation output allows you to calibrate connected oscilloscope probes. This adjustment ensures accurate signal measurement by matching probe characteristics to the oscilloscope's input, reducing measurement errors in high-frequency applications.
