SWM 10 Portable Spot Welding Machine

Name: SWM 10 Portable Spot Welding Machine
Brand: MINOO IMPEX
Price: 9000.0 INR
Availability: InStock

Price 9000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SWM 10 Portable Spot Welding Machine Specification

Humidity
Up to 90% RH (non-condensing)

Operating Voltage
220V AC

Hardness
Handles up to 55 HRc

Test Range
Up to 3 mm (sheet thickness)

Mounting Type
Portable

Application
Sheet metal, wire mesh, repair workshop, laboratory use

Display Type
Analog indicators

Response Time
Instantaneous

Temperature
0C to 40C

Equipment Type
Portable Spot Welding Machine

Max Height
300 mm (overall machine)

Specimen Size
Up to 100 mm x 100 mm

Accuracy
0.5 mm

Features
Portable, easy to operate, quick setup

Power Supply
220V / 50Hz

Port Size
Standard electrode clamps

Automation Grade
Manual

Number of Specimens
Single

Frequency
50Hz

Interface Type
Clamp Type

Measuring Range
0.3-3 mm

Resolution
0.01 mm

Usage
Spot welding ferrous and non-ferrous metals

Capacity
10 KVA

Machine Weight
12 kg

Test Speed
Adjustable

Test Width
10 mm

Test Stroke
60 mm

Control Mode
Manual

Cooling Type
Air-cooled

Cable Length
2 meters

Safety Protection
Overload and overheat protection

Input Power
Single phase

Welding Thickness
0.3 mm to 3 mm

Electrode Material
Copper alloy

Welding Current
Up to 8000 Amps

Transformer Rating
High efficiency

About SWM 10 Portable Spot Welding Machine

SWM 10 Portable Spot Welding Machine

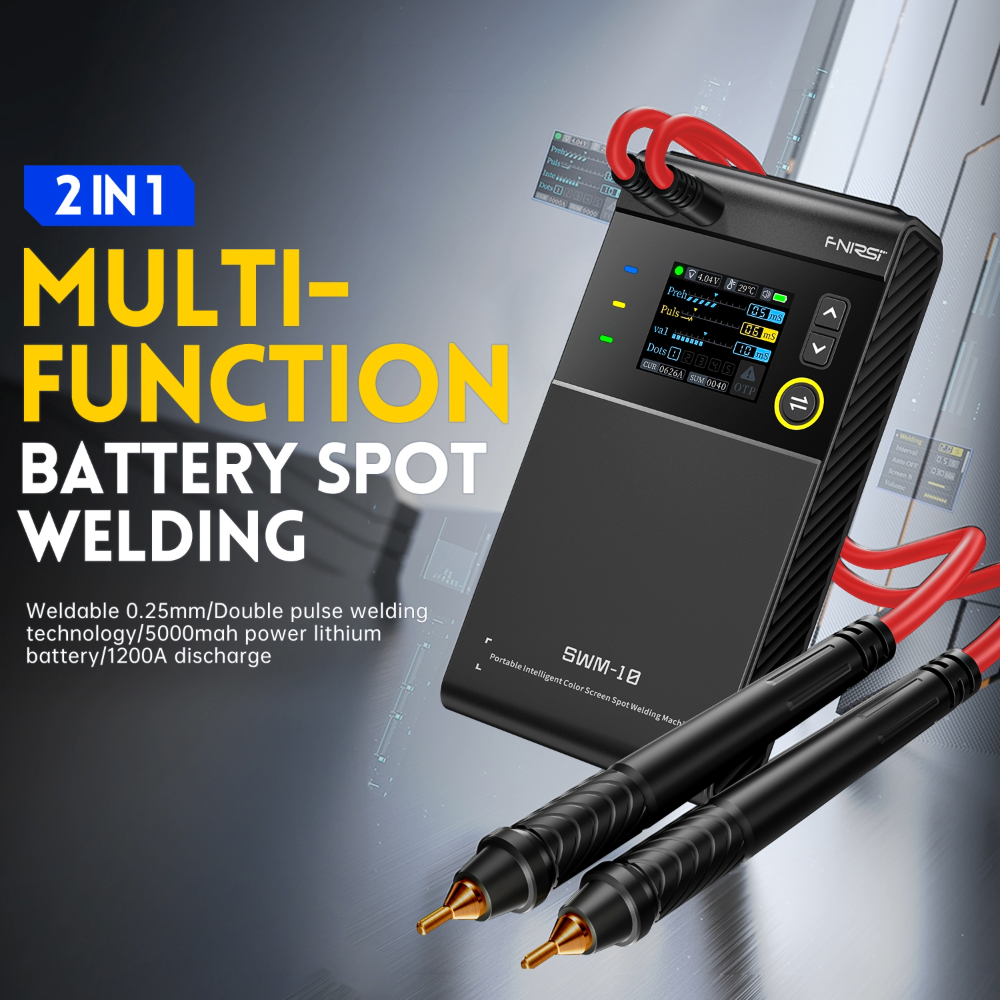

SWM-10 portable handheld spot welding machine is an efficient, convenient and easy-to-carry spot welding tool.

Features:

Double pulse spot welding technology is adopted to make the welding more stable and firm, and it also has the function of power bank.

5000mah power lithium battery, long-lasting battery life.

Equipped with a 1.8-inch FFT high-definition LCD color screenClear display, status at a glance Smarter, more accurate, more humane.

Built-in intelligent temperature control probe, over-temperature, low voltage, and short circuit protection.

Customized settings for preheating, pulse, interval, and number of connection points make welding more stable and firm.

Can weld nickel sheets, iron sheets, stainless steel sheets,, etc. The maximum welding thickness is 0.25mm, and the welding current is 1200A.

Versatile Welding for Precision Applications

The SWM 10 Portable Spot Welding Machine is engineered for high-precision applications, supporting a welding thickness range of 0.3 to 3 mm and accommodating specimens up to 100 mm x 100 mm in size. Its adjustable test speed and high efficiency enable professionals to achieve consistent results in various environments, including workshops and laboratories. The device is well-suited for sheet metal and wire mesh, making it a practical choice for repair and fabrication tasks.

User-Friendly and Safe Operation

Designed with practicality in mind, the SWM 10 spot welder features a manual control mode and analog indicators for straightforward operation. The two-meter cable and portable design facilitate quick setup and flexible movement across worksites. Built-in overload and overheat protection ensures operational safety, while robust copper alloy electrodes guarantee durability under demanding workloads.

FAQ's of SWM 10 Portable Spot Welding Machine:

Q: How does the SWM 10 Portable Spot Welding Machine operate?

A: The SWM 10 uses a manual control mode that allows users to adjust welding parameters and apply spot welds directly using clamp-type standard electrode holders. The machine is powered by a single-phase 220V supply and features analog indicators for real-time monitoring of the process.

Q: What types of materials can be welded with the SWM 10 spot welder?

A: The machine is capable of spot welding both ferrous and non-ferrous metals, including sheet metal and wire mesh. Its copper alloy electrodes and high welding current (up to 8000 Amps) ensure strong, consistent welds across a wide range of materials with hardness up to 55 HRc.

Q: When should I use this portable spot welding machine?

A: The SWM 10 is ideal for repair workshops, laboratories, light fabrication, and maintenance projects where mobility and precision are crucial. Use it when you need efficient spot welding for materials up to 3 mm thick or for on-site or experimental tasks that require easy transport and quick setup.

Q: Where is the SWM 10 most commonly utilized?

A: It is often used in repair workshops, metal fabrication units, laboratories, and locations where portable spot welding of moderate thickness metals is required, such as for repairs, prototyping, or light manufacturing tasks.

Q: What safety features does this machine include?

A: The device is equipped with built-in overload and overheat protection systems, ensuring safe operation even under intensive use. Its air-cooled design further helps to maintain optimal performance and prevent damage during extended sessions.

Q: What are the benefits of using the SWM 10 spot welding machine?

A: This machine provides portability, ease of operation, and quick setup. Its adjustable test speed, high accuracy (0.5 mm), and robust construction make it a reliable solution for various spot welding applications, delivering precise and efficient weld joints.

Q: How do I maintain the optimal performance of my spot welder?

A: To maintain peak performance, regularly check the copper alloy electrodes for wear, ensure the cooling system is unobstructed, and avoid operating the machine in environments with humidity over 90% RH or beyond the temperature range of 0C to 40C. Always operate within its rated capacity and follow standard safety protocols.
