SG003A Multifunctional Signal Generator

Name: SG003A Multifunctional Signal Generator
Brand: MINOO IMPEX
Price: 11000.0 INR
Availability: InStock

Price 11000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SG003A Multifunctional Signal Generator Specification

Mounting Type
Desktop

Frequency
0.01~500 Hz

Measuring Range
0.01 Hz to 500 Hz

Resolution
0.01 Hz

Max Height
120 mm

Accuracy
0.5%

Humidity
80% RH

Temperature
5C to 40C

Application
Testing, calibration, educational, and laboratory uses

Port Size
Standard BNC output

Number of Specimens
1 (single channel)

Equipment Type
Multifunctional Signal Generator

Interface Type
BNC, USB (optional)

Specimen Size
Customizable (standard grip)

Display Type
Digital LED display

Operating Voltage
AC 220V 10%

Test Range
0.01 Hz to 500 Hz

Response Time
<50 ms

Automation Grade
Automatic

Power Supply
AC 220V 10%, 50Hz

Features
Multiple waveform outputs, frequency modulation, phase adjustment, digital settings

Usage
Signal generation and equipment calibration

Capacity
0~10 Vpp (adjustable amplitude)

Machine Weight
10 kg

Test Speed
0.01~500 Hz adjustable

Test Width
80 mm

Test Stroke
100 mm

Control Mode
Digital control

Product Dimension
360 x 320 x 120 mm

Memory Function
Yes, with up to 10 groups of storage

Impedance
50

Phase Adjustment Range
0360

Safety Protection
Overcurrent and short-circuit protection

Coolling Method
Natural air cooling

Noise Level
1 mVrms

Waveform Adjustment
Amplitude, frequency, and offset programmable

Output Waveforms
Sine, Square, Triangle, Sawtooth, Pulse, Noise

Signal Output Channels
1 standard, expandable to 2

About SG003A Multifunctional Signal Generator

SG003A Multifunctional Signal Generator

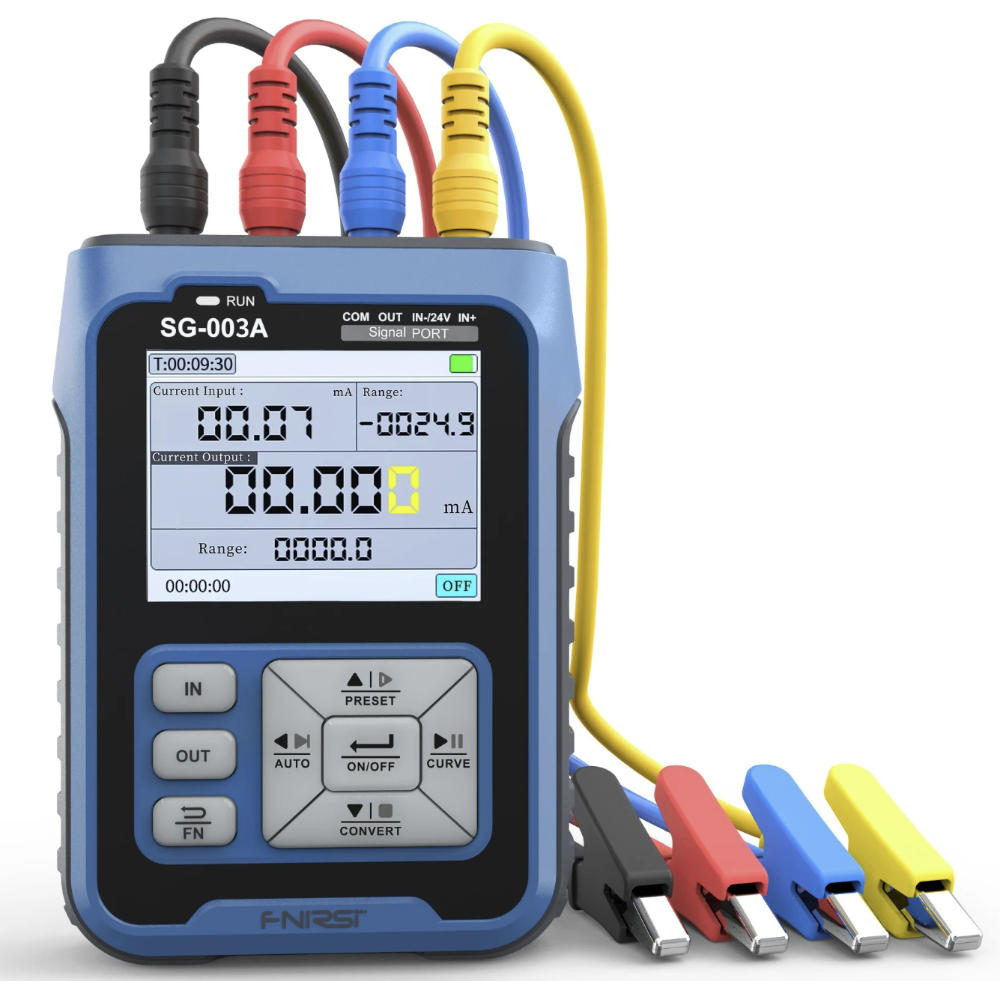

FNIRSI SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and so forth. Friendly operation interface is easy to use. The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision. Easy to carry when you go out to work. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.

Features:

Physical & Engineering: Signals are displayed as physical or engineering (ie pure quantity) values. For example: the current signal of 4-20mA corresponds to 0-100, that is 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100.

Real-time Curve: The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.The current-voltage analog simulator can also adjust the curve within the range of the max and min values.

Signal Conversion: FNIRSI SG-003A signal generator can convert input signals into an output signal, and converted into different physical quantities. The input signal is converted into a current signal, and the input range is 0-1000hz into 4-20mA.

Multiple Port Signal Generator: The Blue (IN-) is an alternate and it is also an input port that can be switched to a 24V test power supply. Red(OUT) and black(COM) form an output port. Yellow(IN+) and Blue(IN-) form the input port.

Preset Value & Output: FNIRSI SG-003A supports 4 groups of signal values can be preset and the output function of continuously changing the size according to the setting parameters, and can select three modes: monotonous rise, fall and cycle.

Versatile Waveform Generation

With the SG003A, users can generate a broad spectrum of waveforms-including sine, square, triangle, sawtooth, pulse, and noise-making it ideal for equipment calibration, academic experiments, and advanced testing routines. Its digital control enhances precision and repeatability.

Customizable Output and Memory Function

Adjust key waveform parameters like amplitude (0~10 Vpp), frequency (0.01-500 Hz), and offset to suit specific experimental needs. Save up to 10 unique configurations with the memory function, allowing fast recall for repetitive tasks and streamlined workflows.

Safety and Reliability Built-In

Designed with your safety in mind, the SG003A provides robust overcurrent and short-circuit protection. Natural air cooling ensures stable, maintenance-free operation, while its sturdy desktop design promises reliability for daily laboratory or industrial use.

FAQ's of SG003A Multifunctional Signal Generator:

Q: How do I adjust the amplitude and frequency on the SG003A signal generator?

A: Amplitude and frequency can be easily adjusted using the digital control interface. Amplitude ranges from 0 to 10 Vpp and frequency can be set between 0.01 Hz and 500 Hz, allowing fine-tuned output for various testing scenarios.

Q: What types of waveforms can the SG003A produce and how are they utilized?

A: The SG003A can generate sine, square, triangle, sawtooth, pulse, and noise waveforms. These varied signals are crucial for simulating real-world electronic environments in equipment calibration, educational demonstrations, and laboratory analysis.

Q: When should I use the memory function, and how many configurations can it store?

A: Use the memory function when you need to frequently recall specific settings or run repetitive tests. The SG003A can store up to 10 groups of custom settings, saving time and reducing user input errors.

Q: Where can the SG003A be deployed in terms of applications and environments?

A: This signal generator is suitable for laboratories, testing facilities, calibration centers, and educational institutions. Its adaptability makes it ideal for equipment verification, teaching purposes, and research development across various environments.

Q: What is the process for connecting test specimens to the SG003A?

A: Connect specimens using the standard BNC output port (or USB if equipped), ensuring compatibility with customizable grip fixtures. The device supports single-channel testing and can be upgraded for dual-channel output if required.

Q: How does the SG003A benefit users in testing and calibration routines?

A: With versatile waveform generation, programmable settings, and high accuracy (0.5%), users achieve consistent and efficient calibration. Digital controls, fast response (<50 ms), and robust safety features support reliable performance for both novice and expert users alike.

Q: What built-in safety measures does the SG003A provide during operation?

A: The SG003A includes overcurrent and short-circuit protection, ensuring safe usage during rigorous testing or calibration routines. Its natural air cooling system further enhances operational safety and longevity.
