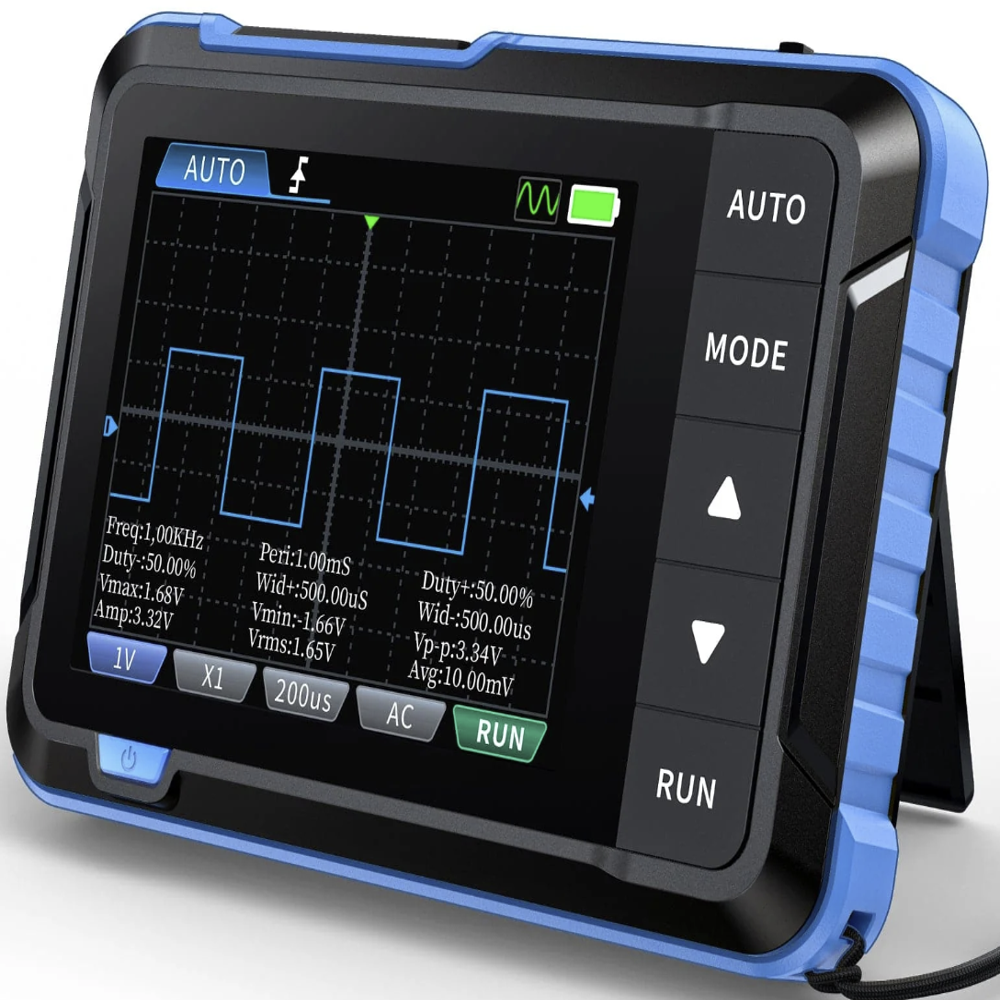

DSO 153 Digital Storage Oscilloscope

Name: DSO 153 Digital Storage Oscilloscope
Brand: MINOO IMPEX
Price: 6400.0 INR
Availability: InStock

Price 6400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

DSO 153 Digital Storage Oscilloscope Specification

Measuring Range
5mV/div to 20V/div

Humidity
0-85% RH

Frequency
Up to 50MHz

Accuracy
3%

Operating Voltage
DC 9V

Features
Storage, waveform freeze, measurement cursor, digital readout

Test Range
0-50MHz

Mounting Type
Handheld, bench-top

Display Type
2.4 inch TFT LCD

Power Supply
DC 9V Adapter

Port Size
BNC for probe, USB for power

Resolution
8-bit AD conversion

Interface Type
BNC, USB

Temperature
0C to 40C

Automation Grade
Semi-automatic

Application
Electronic signal measurement, circuit testing

Usage
Portable electronic testing

Machine Weight
Approx. 500g

Test Speed
Real-time sampling 250Msps

Control Mode
Manual/Automatic

About DSO 153 Digital Storage Oscilloscope

DSO 153 Digital Storage Oscilloscope

Features:

Upgraded Version: Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5MS/s high sampling rate, 500ns-20S time base range, and can measure voltages up to 400V.

DDS Signal Generator: The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10KHz.

Easy Measurement: The handheld oscilloscope is equipped with intelligent one-click automatic configuration function. Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging.

Professional Design: The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320*240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals.

Rechargeable lithium battery: The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours.

Versatile Signal Measurement

With its wide sensitivity range and real-time sampling speed, the DSO 153 excels in diverse electronic measurement scenarios, from basic waveform observation to more demanding diagnostic tasks. The 8-bit AD conversion and measurement accuracy of 3% ensure reliable results, while the variety of trigger options and measurement features make it suitable for both beginners and experienced users.

Portable and User-Friendly Design

Designed for mobility, the DSO 153 combines a lightweight, compact body with both hand-held and bench-top mounting options. The intuitive controls, rechargeable battery option, and clear TFT LCD make on-site troubleshooting and quick diagnostics straightforward. Accessories such as the oscilloscope probe, USB cable, and power adapter are included to enable immediate use out of the box.

FAQ's of DSO 153 Digital Storage Oscilloscope:

Q: How does the DSO 153 Digital Storage Oscilloscope store and display captured waveforms?

A: The DSO 153 captures electronic signals with a real-time sampling speed of 250Msps and stores waveforms up to a depth of 1024 points. You can view these signals on its 2.4-inch TFT LCD in either dot or line display modes, and utilize features like waveform freeze and digital readout for detailed analysis.

Q: What types of signals and frequencies does the DSO 153 support for measurement?

A: This oscilloscope can measure electronic signals within a frequency range of up to 50MHz, with an adjustable sensitivity from 5mV/div to 20V/div. It is suitable for a variety of applications such as electronic signal measurement, circuit testing, and general troubleshooting tasks.

Q: When should I use the different trigger modes (Auto, Normal, Single) on the DSO 153?

A: Use 'Auto' mode for continuous signal monitoring, 'Normal' mode to capture signals only when a trigger event occurs, and 'Single' mode for capturing one-time or transient events, making troubleshooting both recurring and sporadic issues easy and efficient.

Q: Where can the DSO 153 be used most effectively?

A: Thanks to its portable design and optional rechargeable battery, the DSO 153 is ideal for on-site electronic testing, field service, educational labs, and also as a convenient bench-top tool in workshops or classrooms.

Q: What is the process for connecting probes and powering the DSO 153?

A: To use the DSO 153, connect the provided probe to the BNC interface, select the appropriate attenuation (x1 or x10), and supply power using the included DC 9V adapter or optional rechargeable lithium battery. Data connections and charging can be managed via the USB port.

Q: How do the measurement cursor and digital readout features benefit users?

A: The measurement cursor allows precise manual evaluation of waveform parameters, such as voltage and time intervals, while the digital readout provides immediate quantitative data, enhancing diagnostic accuracy and efficiency during analysis tasks.

Q: What are the main benefits of choosing the DSO 153 over traditional analog oscilloscopes?

A: The DSO 153 offers waveform storage, digital measurement accuracy, portability, and multi-language support. These features deliver greater convenience and flexibility compared to analog models, facilitating efficient signal monitoring and detailed analysis in various environments.
