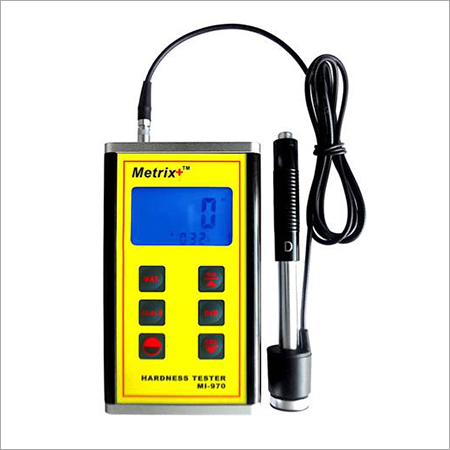

Leeb Hardness Tester

Leeb Hardness Tester
Leeb Hardness Tester
Product Code : MI-970
Product Description

Leeb Hardness Tester

MI-970

  • +0.8% at LD=970
  • 170~970HLD
  • External Probe Memory 50 Measurement
  • HL-HRC-HRB-
  • HRA-HB-HV-HS
Typical Applications
  • Die cavity of molds
  • Inspection of bearing and other mass produced parts on a production line
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces.
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Rapid testing in large range and multi-measuring areas for large-scale work piece

Testing Features

  • Small in size for narrow space.
  • Test at any angle, even upside down.
  • Direct display of hardness scales HRB, HRC, HV, HB, HSD, HL.
  • Memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
  • User recalibration function allowed.
  • Can communicate with PC computer for statistics and printing by the optional cable.
  • Manual or automatic shut down.
  • Low battery indication.

Technical Specifications

  • Display: Large LCD with back light
  • Accuracy: Display error +8% at LD=970
  • Measuring range: 170-97OL
  • Conversion: HL-HRC-HRB-HB-HV-HSD
  • Materials: 9 different common materials
  • Memory: 50 Groups Including Single
  • Impact device: D Will handle the majority of hardness testing

applications.

  • Power supply: 2x1.5V AA size battery
  • Dimension: 146x65x36mm
  • Weight: 130g (not including batteries)
  • Working temperature : - 10°c~ + 50°C
  • Storage temperature : - 30°c~ + 50
  • Standard Accessories: Impact Device D, Test Block, Small Ring, Cleaning Brush, Manual 8. Carry Case.
  • Optional Accessories: RS 232C+ Software, Support Ring Set, Irregular Impact Device, B Nylon Brush,
