Leeb Hardness Tester

Leeb Hardness Tester
Leeb Hardness Tester
Product Code : 02
Product Description

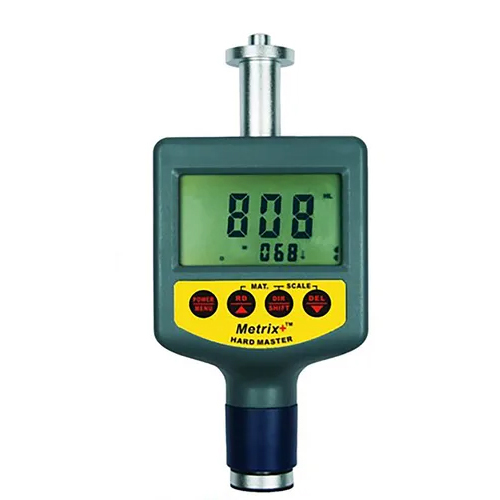

Leeb Hardness Tester

HARDMASTER

  • +0.8% at LD=900
  • 200~900HLD
  • Integrated Probe Memory 50 Measurement
  • HL-HRC-HRB-
  • HRA-HB-HV-HS

Features

  • Die cavity of molds
  • Inspection of bearing and other mass produced parts on a production line
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Inspection of installed machinery, Permanent parts of assembled systems and heavy work pieces
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Rapid testing in large range and multi measuring areas for large-scale work piece
  • Palm size for narrow space
  • Test at any angle, even upside down
  • Direct display of hardness scales HRB, HRC, HV, HB. HSD, HL
  • Large memory could store 250 groups including single measured value, impact direction, material and hardness scale etc
  • User recalibration function allowed
  • Can communicate with PC computer for statistics and printing by the optional cable
  • Manual or automatic shut down
  • Low battery indication

Technical Specifications:

Model Specification

Metrix Hard Master

Metrix + 130

Display

14 mm LCD with back light

Matrix LCD 128x64 dot Back light

Measuring Range

200-900L

170-960HLD

Accuracy

Display error +0.8% at = 900

+10 HLD

Test Direction

360o (plumb down, horizontal, indined up, plumb up)

Conversion

HL - HRC - HRB - HRA - HB - HV - HS

Materials

9 different common materials

Impact Device

D will handle the majority of hardness testing

Memory

250 Data can be stored

500 Data can be stored

PC Connectivity

RS 232C

USB

Re-Calibration

Allowed

Allowed

Power

2 x 1.5V "AAA" Battery

4 x 1.5V "AA" Battery

APO

Yes

Yes

Low Battery Indication

Yes

Yes

Weight & Dimensions

146x65x36mm 130g

150x80x38mm 360g

Operating temperature

0oC~+50oC

0oC~+50oC

Storage Temperature

-20oC - +60oC

-20oC - +70oC

Accessories include

D type impact device, Standard Leeb Hardness Block, A nylon Brush, Support ring, PC Interface Data cable, software CD, Manual & Aluminum Carry case

Optional Accessories

B Nylon Brush, Irregular Type Impact Device and Support ring
