Large Backlit LCD

Large Backlit LCD
Large Backlit LCD

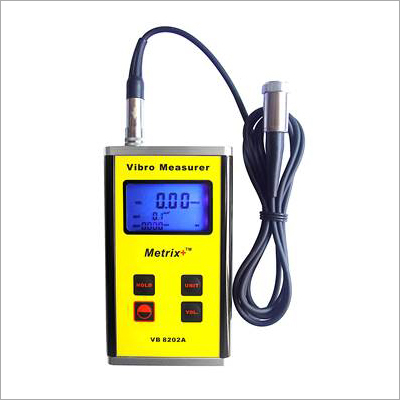

Product Code : VB 8202A
Product Description

Large Backlit LCD

VB 8202A

  • Velocity, Acceleration Displacement
  • Parameters displays simultaneously

Can display the parameters of 'Displacement', Velocity' and Acceleration simultaneously. Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement lt has a bearing condition measurement function.

Features

  • Can display the parameters of Displacement', Velocity' and Acceleration simultaneously.
  • In accordance with ISO 2954, used for periodic measurements to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
  • Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning and predictive maintenance purposes.
  • Individual high quality accelerometer for accurate and repeatable measurements.
  • Wide frequency range (10Hz~10kHz) in acceleration mode.
  • AC output socket for headphones and recording.
  • Optional headphones for use as electronic stethoscope.
  • Bearing condition monitoring function.
  • Use "USB data output and RS-232 data output with connection PC

Technical Specifications

  • Transducer Piezoelectric accelerometer
  • Accuracy : 5%+2 digits
  • Measurement Range:Displacement: 0.001-4.000mm equivalent peak-peak /0.04-160.0 mil
  • Velocity: 0.01-400.0 mm/s true RMS / 0.000-16.00 inch/s
  • Acceleration: 0.1-400.0 m/s equivalent peak / 0.3-1312 ft/s/ 0.0-40g
  • Frequency Range : Displacement:10Hz.~1kHz.
  • Velocity :10Hz.~1kHz.
  • Acceleration: 10Hz.~10kHz.
  • Operating Conditions : Temperature :0-50 C
  • Humidity : below 95% RH
  • Analogue Output : AC output 0~2.0V peak lull scale (load resistance: above 10k)
  • Power Supply : 2x1.5 vAA(UM-3) Battery
  • Size : 130x70x30mm
  • Weight : 305g (Not including Batteries)
