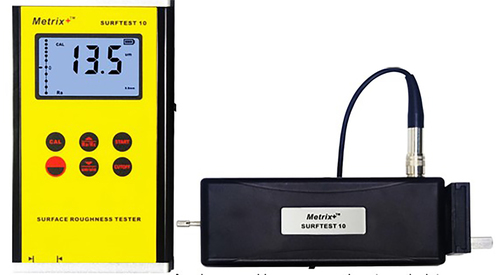

Handysurf 10 Surface Roughness Tester

Handysurf 10 Surface Roughness Tester
Handysurf 10 Surface Roughness Tester
Product Code : 04
Product Description

Handysurf 10 Surface Roughness Tester

  • handySURF 10+10%
  • Ra 0.05-10.00um/1.000-400.0uinch
  • Rz 0.020-100um/0.780-4000uinch
  • Large Backlight LCD

Product Feature

  • High accuracy inductance sensor.
  • Multiple parameter measurement:Ra.Rz.
  • With low power consumption indication.
  • Can be measured in several parts of the surface roughness:Planar, curved surface. small hole.slot of the irregular surface.
  • Design of electromechanical integration. small volume, light weight, convenient with measuring value storage function and data storage query.
  • Use DSP chip control and data processing. high speed consumption LCD digital display with backlight function.
  • Use "USB data output" and "RS-232 data output" with connection PC.
  • Brovide ‘Bluetooth data output‘ choice.


Product Description


Amittari Surface Roughness Tester adopt Computer technology. compatible with four standards of ISO. DIN. ANSI and JIS. Widely used in production site to measure surface roughness of various machinery-processed parts. Can communicate with PC computer for statistics, printing and analysing by the optional cable and the software for RS232C interface.

Product Parameter


Measuring Range

Ra: 0.05-10.00um/1.000-400.0uinch

Rz: 0.020-100.0um/0.780-4000uinch

Accuracy

Not more than + 10%

Fluctuation of display value

Not more than 6%

Resolution

0.001um

0.01um

0.1um

Probe

Radius

10 um

Material

Diamond

Measurement Force

16mN (1.6gf)

Angle

90o

Vertical Radius

48mm

Maximum Driving Stroke

12.5mm/0.5inch

Cut off Length

0.25mm, 0.8mm, 2.5mm

Driving Speed

Measuring

Sampling Length = 0.25mm Vt=0.135mm/s

Sampling Length = 0.25mm Vt=0.135mm/s

Sampling Length = 0.25mm Vt=0.135mm/s

Returning


Evaluation length

1~2L cut off optional (0.25 mm sampling length = 1L)

Product Accessories

Standard Accessories

Host, Small Screwdriver, Standard Boilerplate, Standard Sensors, Carrying Case, Instruction Manual.

Optional Accessories

USB Data Output. Rs-232 Data Output, bluetooth Data Output
