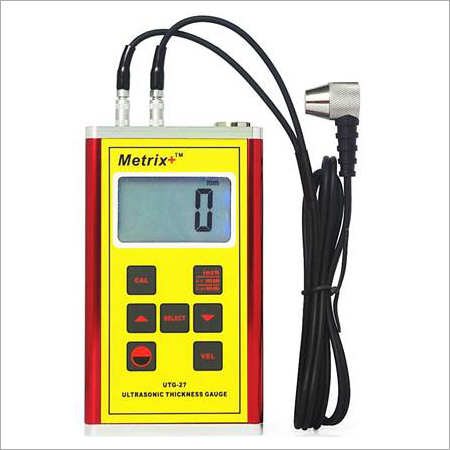

Digital Ultrasonic Thickness Gauge

Digital Ultrasonic Thickness Gauge
Digital Ultrasonic Thickness Gauge
Product Code : UTG 27
Product Description

Digital Ultrasonic Thickness Gauge

UTG - 27

  • 1.0~400mm
  • metric/imperial combine
  • Large Backlit LCD with Resolution 0.1/0.01mm Selectable.

Features

  • Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.
  • With high power of emission and broad band of receiving sensitivity, the gauge can match
  • probes of different frequencies. That makes it easy to measure the rough surface,even cast iron. It is widely used in almost all kindsof industries.
  • Applicable to measure the thickness of many materials e.g.Steel,Cast iron, Aluminum,Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
  • Automatic power off to conserve power.
  • Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface.

Technical Specifications

Display

4 Digit Backlit LCD

Range

1-400 mm (45# Steel) inch/mm switchable

Resolution

0.1/0.01 mm switchable

Accuracy

+0.5%n + 0.01 mm

Sound Velocity

500-900 m/s

Operating condition

0-40oC/Humidity <80%

Power

1.5V x 4 (UM 4 Battery)

Size & Weight

130x76x32mm 340gm with out battery

Standard Accessories

Ultrasonic Sensor, Oil, User Manual and hard carry case

Optional accessories

RS 232C PC interface cable/USB adaptor & software

Blue tooth

Optional probes & calibration block

PT-06mm for small & curve surfaces/pipes
PT-08mm standard probe
PT HT Ceramic probe for high temperature surfaces
Calibration step block
